IW1796-18B
Active27W LOW BOM COST RAPIDCHARGE™ AC/DC DIGITAL CONTROLLER WITH XM-COMM TECHNOLOGY IN SMALL SOT23-6
Deep-Dive with AI
Search across all available documentation for this part.
IW1796-18B
Active27W LOW BOM COST RAPIDCHARGE™ AC/DC DIGITAL CONTROLLER WITH XM-COMM TECHNOLOGY IN SMALL SOT23-6
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | IW1796-18B | iW1796 Series |
|---|---|---|
| Applications | - | Power Supply Controller |
| Mounting Type | - | Surface Mount |
| null | - | |
| Operating Temperature | - | 150 °C |
| Operating Temperature | - | -40 °C |

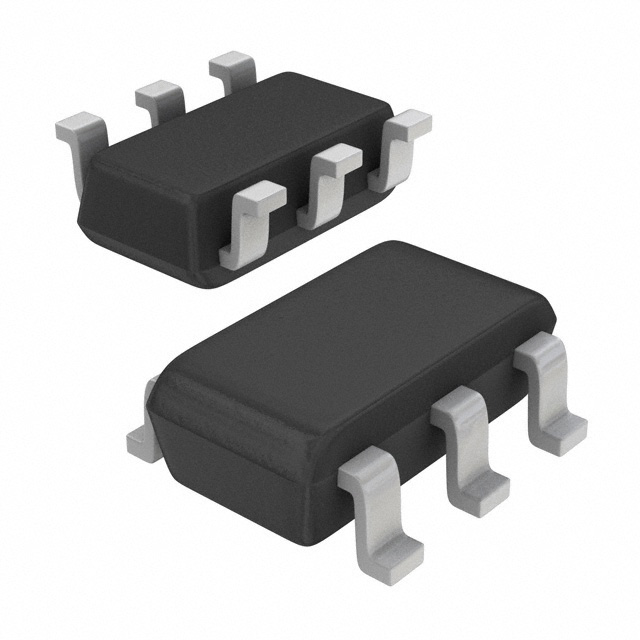

| Package / Case | - | SOT-23-6 |
| Supplier Device Package | - | SOT-23-6 |
| Voltage - Supply | - | 45 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 6000 | $ 0.30 | |
| 15000 | $ 0.29 | |||
| 30000 | $ 0.28 | |||
iW1796 Series
27W Low BOM Cost RapidCharge™ AC/DC Digital Controller with XM-Comm Technology in Small SOT23-6
| Part | Package / Case | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Supplier Device Package | Voltage - Supply | Applications |
|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation IW1796-09 | SOT-23-6 | 150 °C | -40 °C | Surface Mount | SOT-23-6 | 45 VDC | Power Supply Controller |
Renesas Electronics Corporation IW1796-18B | SOT-23-6 | 150 °C | -40 °C | Surface Mount | SOT-23-6 | 45 VDC | Power Supply Controller |
Renesas Electronics Corporation IW1796-09 | |||||||
Renesas Electronics Corporation IW1796-18B | |||||||
Renesas Electronics Corporation IW1796-08 | SOT-23-6 | 150 °C | -40 °C | Surface Mount | SOT-23-6 | 45 VDC | Power Supply Controller |
Renesas Electronics Corporation IW1796-08 |
Description
General part information
iW1796 Series
The iW1796 is a 27W output, high-performance AC/DC RapidCharge™ power supply controller that integrates Renesas' XM-Comm technology, eliminating all optocouplers from travel adapters to reduce cost and improve reliability. The device comes in an SOT23-6 package, reducing the total solution size for space-sensitive travel adapter applications. The device can support Qualcomm® Quick Charge™ 3.0 and 2.0 and other rapid charging protocols.
It is optimized to work with Renesas'iW662secondary-side synchronous rectifier controller and rapid charge interface IC. The iW662 IC uses XM-Comm technology to transmit all necessary information via an optocoupler to the iW1796, including voltage requests, output current limits, output voltage undershoot, output overvoltage, and fault and reset signals.
A full array of protection features includes Renesas' advanced fault control technology to address soft short circuits in charger cables and connectors without latching off the output.
