16282-3SG-318

Active

Conxall/Switchcraft

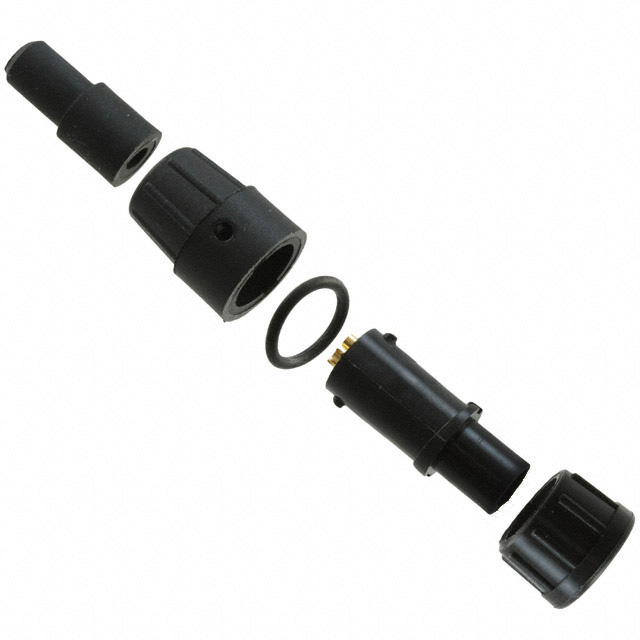

CONN PLUG FMALE 3P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Conxall/Switchcraft

CONN PLUG FMALE 3P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	16282-3SG-318	16282-3S Series

Applications	Medical, Data, Instrumentation, Industrial	Medical, Data, Instrumentation, Industrial
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	2.29 mm
Cable Opening	-	0.09 - 0.14 in
Cable Opening	-	3.56 mm
Cable Opening [Max] [custom]	0.2 in	0.2 in
Cable Opening [Max] [custom]	5.08 mm	5.08 mm
Cable Opening [Min] [custom]	4.57 mm	4.57 mm
Cable Opening [Min] [custom]	0.18 in	0.18 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Backshell	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Material Flammability Rating	UL94 HB	UL94 HB
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Voltage Rating	600 VAC	600 VAC

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Mounting Type	Material Flammability Rating	Applications	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Features	Primary Material	Contact Finish - Mating	Fastening Type	Connector Type	Backshell Material, Plating	Orientation	Color	Ingress Protection	Shielding	Current Rating (Amps)	Voltage Rating	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]
Conxall/Switchcraft 16282-3SG-311	2.29 mm	0.09 in, 0.14 in	3.56 mm	Free Hanging (In-Line)	UL94 HB	Data, Industrial, Instrumentation, Medical	Copper Alloy	85 °C	-40 °C	Backshell	Plastic	Gold	Bayonet Lock	Female Sockets, Plug	Thermoplastic	Keyed	Black	IP67 - Dust Tight, Waterproof	Unshielded	7.5 A	600 VAC
Conxall/Switchcraft 16282-3SG-318				Free Hanging (In-Line)	UL94 HB	Data, Industrial, Instrumentation, Medical	Copper Alloy	85 °C	-40 °C	Backshell	Plastic	Gold	Bayonet Lock	Female Sockets, Plug	Thermoplastic	Keyed	Black	IP67 - Dust Tight, Waterproof	Unshielded	7.5 A	600 VAC	4.57 mm	0.18 in	0.2 in	5.08 mm
