3044380
ActivePhoenix Contact

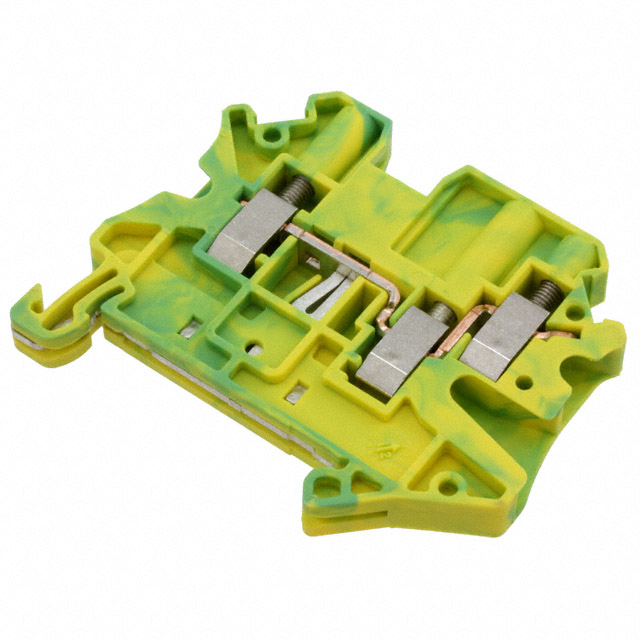

SPLICE TERMINAL: RAIL; SCREW TERMINAL; YELLOW-GREEN; POLYAMIDE
3044380
ActivePhoenix Contact
SPLICE TERMINAL: RAIL; SCREW TERMINAL; YELLOW-GREEN; POLYAMIDE
Description
General part information
3044380
Terminal Block Connector 3 Position Ground, Earth Green, Yellow 10-26 AWG
Technical Specifications
Parameters and characteristics for this part
| Specification | 3044380 |
|---|---|
| Color | Yellow, Green |
| Material - Insulation | Polyamide, PA, Nylon |
| Material Flammability Rating | UL94 V-0 |
| Number of Levels | 1 |
| Number of Positions | 3 |
| Stripping Length | 9 mm |
| Terminal Width | 6.2 mm |
| Termination Style | Screw |
| Type | Earth, Ground |
| Wire Gauge or Range - AWG (Max) | 25.5 AWG |
| Wire Gauge or Range - AWG (Min) | 10 AWG |
| Wire Gauge or Range - mm² (Maximum) | 6 mm² |
| Wire Gauge or Range - mm² (Minimum) | 0.14 mm² |
