Description
General part information

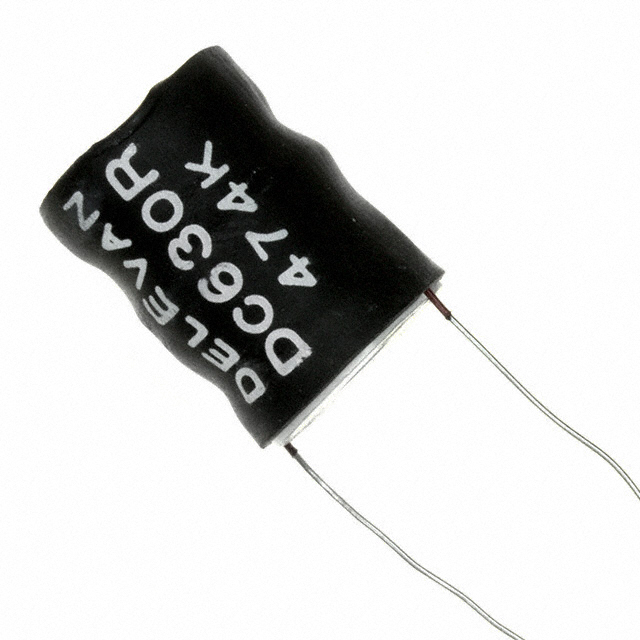

DC630R-474K
470 µH Unshielded Drum Core, Wirewound Inductor 1.58 A 377mOhm Max Radial, Vertical Cylinder
Technical Specifications
Parameters and characteristics for this part
| Specification | DC630R-474K |
|---|---|
| Current - Saturation (Isat) | 3.1 A |
| Current Rating | 1.58 A |
| DC Resistance (DCR) (Max) | 377 mOhm |
| Height - Seated (Max) | 0.83 in |
| Inductance | 0.47 mH |
| Inductance Frequency - Test | 10 kHz |
| Material - Core | Ferrite |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Vertical Cylinder, Radial |
| Shielding | Unshielded |
| Size / Dimension Diameter | 0.63 in |
| Tolerance | 10 % |
| Type | Drum Core, Wirewound |
