Description
General part information

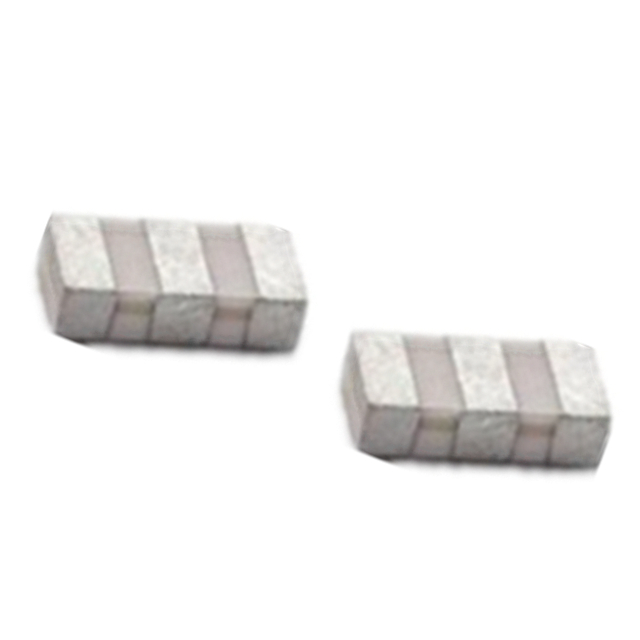

CP2M000000S047
2 MHz Ceramic Resonator Built in Capacitor 47 pF ±0.3% 60 Ohms -25°C ~ 85°C Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | CP2M000000S047 |
|---|---|
| Capacitance | 47 pF |
| Features | Built in Capacitor |
| Frequency | 2 MHz |
| Frequency Stability | 0.3 % |
| Frequency Tolerance | 0.5 % |
| Height | 0.067 in, 0.079 in |
| Impedance | 60 Ohm |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | No Lead, 3-SMD |
| Size / Dimension Length | 0.236 in |
| Size / Dimension Width | 0.118 in |
| Type | Ceramic |
