35RASMT3BHNTRX
ActiveSwitchcraft Inc.

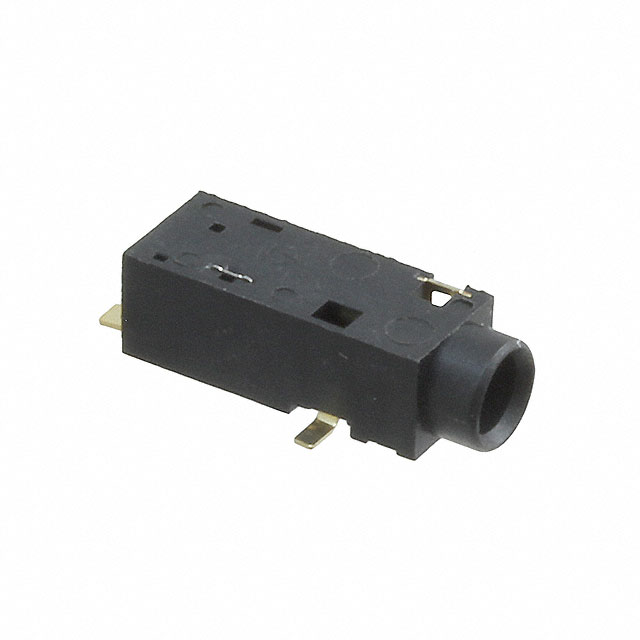

CONN JACK STEREO 3.5MM SMD R/A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
35RASMT3BHNTRX
ActiveSwitchcraft Inc.
CONN JACK STEREO 3.5MM SMD R/A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 35RASMT3BHNTRX | 35RASM Series |
|---|---|---|
| Actual Diameter [diameter] | 0.142 in | 0.142 in |
| Actual Diameter [diameter] | 3.6 mm | 3.6 mm |
| Body Color | Black | Black |
| Connector Type | Phone Jack | Phone Jack |
| Contact Material | Copper Alloy | Copper Alloy |
| Contact Material - Plating [custom] | Silver | Silver |
| Current Rating (Amps) | 3 A | 3 A |
| Features | Board Guide | Board Guide |
| Gender | Female | Female |
| Housing Material | Thermoplastic | Thermoplastic |
| Industry Recognized Mating Diameter | 0.141 " | 0.141 " |
| Industry Recognized Mating Diameter | 0.125 " | 0.125 " |
| Industry Recognized Mating Diameter | 3.5 mm | 3.5 mm |
| Internal Switch(s) | Single Switch | Two Switches, Single Switch |
| Mounting Type | Surface Mount, Right Angle | Surface Mount, Right Angle |
| Number of Positions/Contacts | - | 2 - 3 Conductors |
| Number of Positions/Contacts [custom] | 3 | 3 |
| Number of Positions/Contacts [custom] | 4 | 4 - 5 |
| Operating Temperature [Max] | 85 °C | 85 °C |
| Operating Temperature [Min] | -25 °C | -25 °C |
| Shielding | Unshielded | Unshielded |
| Signal Lines | Stereo | Stereo, Mono |
| Termination | Solder | Solder |
| Voltage - Rated | 250 VAC | 250 VAC |
35RASM Series
CONN JACK STEREO 3.5MM SMD R/A
| Part | Contact Material - Plating [custom] | Housing Material | Number of Positions/Contacts [custom] | Number of Positions/Contacts [custom] | Contact Material | Voltage - Rated | Current Rating (Amps) | Termination | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Industry Recognized Mating Diameter | Connector Type | Internal Switch(s) | Body Color | Signal Lines | Actual Diameter [diameter] | Actual Diameter [diameter] | Features | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Shielding | Gender | Number of Positions/Contacts |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Switchcraft Inc. 35RASMT4BHNTRX | Silver | Thermoplastic | 3 | 5 | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Two Switches | Black | Stereo | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female | |
Switchcraft Inc. 35RASMT2AHNTRX | Thermoplastic | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Single Switch | Black | Mono | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female | 2 Conductors, 3 Conductors | |||
Switchcraft Inc. 35RASMT3BHNTRX | Silver | Thermoplastic | 3 | 4 | Copper Alloy | 250 VAC | 3 A | Solder | 0.141 " | 0.125 " | 3.5 mm | Phone Jack | Single Switch | Black | Stereo | 0.142 in | 3.6 mm | Board Guide | -25 °C | 85 °C | Surface Mount, Right Angle | Unshielded | Female |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.46 | |
| 10 | $ 1.27 | |||
| 25 | $ 1.21 | |||
| 50 | $ 1.19 | |||
| 100 | $ 1.13 | |||
| 250 | $ 1.03 | |||
| 700 | $ 0.95 | |||
Description
General part information
35RASM Series
3.50mm (0.141", 1/8", Mini Plug) - Headphone Phone Jack Stereo (3 Conductor, TRS) Connector Solder
