SMBJ24A

Active

MDD

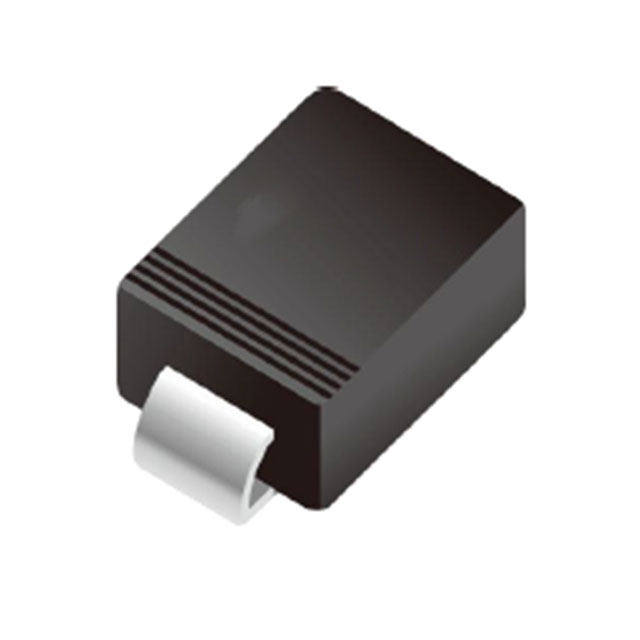

TVS DIODE 24VWM 38.9VC DO214AA

Search across all available documentation for this part.

Active

MDD

TVS DIODE 24VWM 38.9VC DO214AA

Technical Specifications

Parameters and characteristics for this part

Specification	SMBJ24A

Applications	General Purpose
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-65 °C
Package / Case	SMB, DO-214AA
Power - Peak Pulse	600 W
Power Line Protection	False
Supplier Device Package	SMB
Supplier Device Package	DO-214AA
Type	Zener
Unidirectional Channels [custom]	1
Voltage - Breakdown (Min) [Min]	26.7 V
Voltage - Clamping (Max) @ Ipp [Max]	38.9 V
Voltage - Reverse Standoff (Typ)	24 V

Part	Operating Temperature [Max]	Operating Temperature [Min]	Power Line Protection	Package / Case	Voltage - Reverse Standoff (Typ)	Power - Peak Pulse	Applications	Voltage - Clamping (Max) @ Ipp [Max]	Unidirectional Channels [custom]	Mounting Type	Supplier Device Package	Supplier Device Package	Type	Voltage - Breakdown (Min) [Min]
MDD SMBJ24A	150 °C	-65 °C		DO-214AA SMB	24 V	600 W	General Purpose	38.9 V	1	Surface Mount	SMB	DO-214AA	Zener	26.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

38.9V Clamp 15.5A Ipp Tvs Diode Surface Mount DO-214AA (SMB)
