EN3C3FX

Active

Switchcraft Inc.

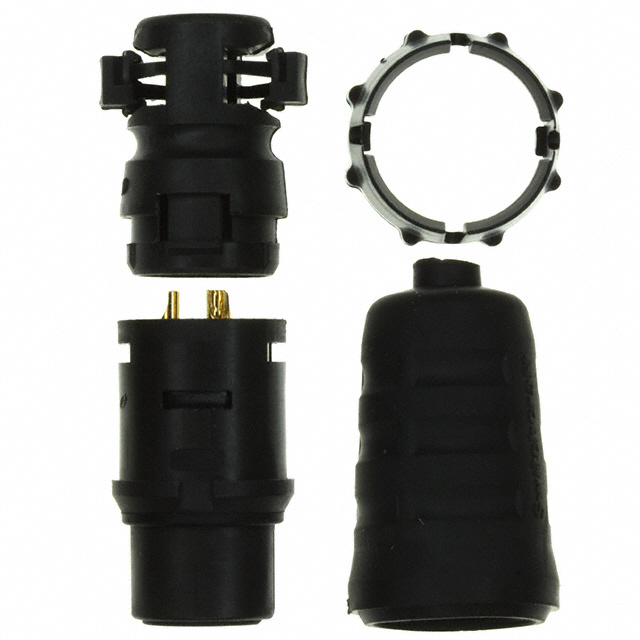

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EN3C3FX

Active

Switchcraft Inc.

CONN PLUG FMALE 3P GOLD SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.17
		10	$ 9.90
		25	$ 9.52
		50	$ 9.14
		100	$ 8.63
		300	$ 7.87
		500	$ 7.84

Description

General part information

EN3C3F Series

3 Position Circular Connector Plug, Female Sockets Solder Cup

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EN3C3FX	EN3C3F Series

Applications	Instrumentation, Medical, General Purpose, Marine	Instrumentation, Medical, General Purpose, Marine
Backshell Material, Plating	Thermoplastic	Thermoplastic
Cable Opening	-	5.84 mm
Cable Opening	-	0.38 in
Cable Opening	-	9.65 mm
Cable Opening	-	0.23 in
Cable Opening [diameter]	6.73 mm, 4.06 mm	4.06 - 6.73 mm
Cable Opening [diameter]	0.265 in, 0.16 in	0.16 - 0.265 in
Color	Black	Black
Connector Type	Female Sockets, Plug	Female Sockets, Plug
Contact Finish - Mating	Gold	Gold
Contact Material	Copper Alloy	Copper Alloy
Current Rating (Amps)	7.5 A	7.5 - 13 A
Fastening Type	Bayonet Lock	Bayonet Lock
Features	Cable Clamp, Coupling Nut, Backshell	Cable Clamp, Coupling Nut, Backshell
Ingress Protection	IP66/IP68	IP66/IP68
Insert Material	Elastomer	Elastomer
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Free Hanging (In-Line)	Free Hanging (In-Line)
Operating Temperature [Max]	65 °C	65 °C
Operating Temperature [Min]	-40 °C	-40 °C
Orientation	Keyed	Keyed
Primary Material	Plastic	Plastic
Shielding	Unshielded	Unshielded
Termination	-	Crimp
Voltage Rating	250 VAC	250 VAC

EN3C3F Series

CONN PLUG FMALE 3P GOLD SLDR CUP

Part	Fastening Type	Contact Finish - Mating	Cable Opening [diameter]	Cable Opening [diameter]	Applications	Insert Material	Connector Type	Current Rating (Amps)	Voltage Rating	Orientation	Operating Temperature [Max]	Operating Temperature [Min]	Shielding	Color	Primary Material	Mounting Type	Material Flammability Rating	Backshell Material, Plating	Contact Material	Features	Ingress Protection	Termination	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]
Switchcraft Inc. EN3C3F16X	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	13 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68
Switchcraft Inc. EN3C3FCKX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	7.5 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68	Crimp
Switchcraft Inc. EN3C3FX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	7.5 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68
Switchcraft Inc. EN3C3FCX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	7.5 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68	Crimp
Switchcraft Inc. EN3C3FLX	Bayonet Lock	Gold			General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	7.5 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68		5.84 mm	0.38 in	9.65 mm	0.23 in
Switchcraft Inc. EN3C3FKX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	7.5 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68
Switchcraft Inc. EN3C3F16CX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	13 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68	Crimp
Switchcraft Inc. EN3C3F16CKX	Bayonet Lock	Gold	4.06 mm, 6.73 mm	0.16 in, 0.265 in	General Purpose, Instrumentation, Marine, Medical	Elastomer	Female Sockets, Plug	13 A	250 VAC	Keyed	65 °C	-40 °C	Unshielded	Black	Plastic	Free Hanging (In-Line)	UL94 V-0	Thermoplastic	Copper Alloy	Backshell, Cable Clamp, Coupling Nut	IP66/IP68	Crimp
