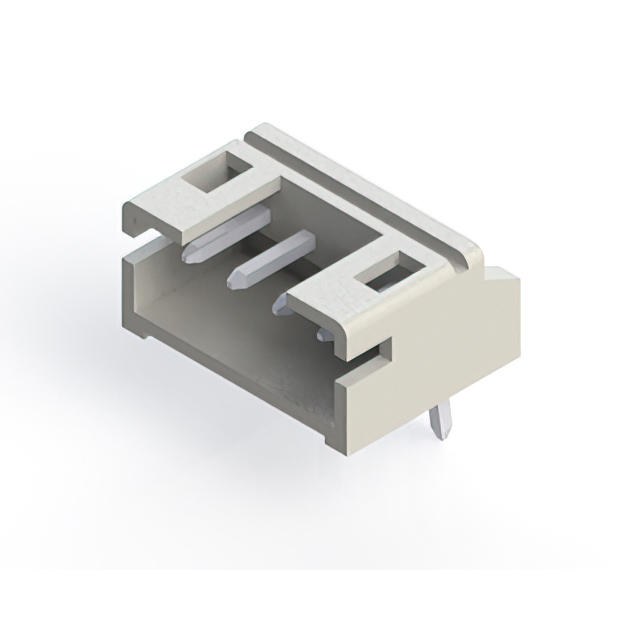

140-504-415-000

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 4 P.C

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

140-504-415-000

Active

EDAC Inc.

2.0MM PITCH CONNECTOR WITH 4 P.C

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.16
		10	$ 0.14
		100	$ 0.10
		1000	$ 0.07
		5000	$ 0.06
		10000	$ 0.06

Description

General part information

140-504 Series

Connector Header Through Hole, Right Angle 4 position 0.079" (2.00mm)

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	140-504-415-000	140-504 Series

Color	-	Natural
Connector Type	Header	Receptacle, Header
Contact Finish - Post	Tin	Tin
Contact Material	Brass	Brass
Contact Shape	Square	Square
Contact Termination	-	Crimp
Contact Type	Male Pin	Female Socket, Male Pin
Current Rating (Amps)	2 A	2 A
Fastening Type	Detent Lock	Detent Lock
Features	-	Polarizing Key, Solder Retention
Insulation Color	Natural	Natural
Insulation Height	0.197 in	0.185 - 0.24 in
Insulation Height	5 mm	4.7 - 6.1 mm
Insulation Height	-	5.51 mm
Insulation Height	-	0.217 in
Insulation Material	Polyamide (PA66), Nylon 6/6	Polyamide (PA66), Nylon 6/6, Polyamide (PA9T), Nylon 9T, Liquid Crystal Polymer (LCP)
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Free Hanging (In-Line), Surface Mount, Right Angle, Through Hole, Surface Mount, Through Hole, Right Angle
Note	-	Contacts Not Included
Number of Positions	4	4
Number of Positions Loaded	All	All
Number of Rows	1	1
Operating Temperature [Max]	105 ░C	85 - 105 °C
Operating Temperature [Min]	-40 °C	-40 - -25 °C
Pitch	-	0.079 in
Pitch	-	2 mm
Pitch - Mating [x]	0.079 in	0.079 in
Pitch - Mating [x]	2 mm	2 mm
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Cable/Wire	Board to Cable/Wire
Termination	Kinked Pin, Solder	Solder, Kinked Pin, Solder
Voltage Rating	100 VAC	100 VAC

140-504 Series

CONN RCPT HSG 4POS 2.00MM

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Contact Termination	Mounting Type	Note	Color	Insulation Material	Number of Positions	Number of Rows	Contact Type	Features	Pitch [x]	Pitch [x]	Fastening Type	Contact Shape	Insulation Height [custom]	Insulation Height [custom]	Current Rating (Amps)	Number of Positions Loaded	Voltage Rating	Pitch - Mating [x]	Pitch - Mating [x]	Style	Material Flammability Rating	Shrouding	Contact Finish - Post	Contact Material	Insulation Color	Termination	Insulation Height	Insulation Height
EDAC Inc. 140-504-210-011	-25 °C	85 °C	Receptacle	Crimp	Free Hanging (In-Line)	Contacts Not Included	Natural	Polyamide (PA66), Nylon 6/6	4	1	Female Socket	Polarizing Key	0.079 in	2 mm	Detent Lock
EDAC Inc. 140-504-417-060	-25 °C	85 °C	Header		Surface Mount, Right Angle			Nylon 9T, Polyamide (PA9T)	4	1	Male Pin	Solder Retention			Detent Lock	Square	5.51 mm	0.217 in	2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Solder
EDAC Inc. 140-504-415-101	-40 °C	105 ░C	Header		Through Hole			Polyamide (PA66), Nylon 6/6	4	1	Male Pin				Detent Lock	Square			2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Solder	0.24 in	6.1 mm
EDAC Inc. 140-504-417-011	-40 °C	105 ░C	Header		Surface Mount			Liquid Crystal Polymer (LCP)	4	1	Male Pin	Solder Retention			Detent Lock	Square	5.51 mm	0.217 in	2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Solder
EDAC Inc. 140-504-415-100	-40 °C	105 ░C	Header		Through Hole, Right Angle			Polyamide (PA66), Nylon 6/6	4	1	Male Pin				Detent Lock	Square			2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Solder	0.185 in	4.7 mm
EDAC Inc. 140-504-415-000	-40 °C	105 ░C	Header		Through Hole, Right Angle			Polyamide (PA66), Nylon 6/6	4	1	Male Pin				Detent Lock	Square			2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Kinked Pin, Solder	0.197 in	5 mm
EDAC Inc. 140-504-415-001	-40 °C	105 ░C	Header		Through Hole			Polyamide (PA66), Nylon 6/6	4	1	Male Pin				Detent Lock	Square			2 A	All	100 VAC	0.079 in	2 mm	Board to Cable/Wire	UL94 V-0	Shrouded - 4 Wall	Tin	Brass	Natural	Kinked Pin, Solder	0.24 in	6.1 mm
