WM071RI,BK
ActiveSerpac
BOX ABS BLACK 6.88"L X 4.88"W
Deep-Dive with AI
Search across all available documentation for this part.
WM071RI,BK
ActiveSerpac
BOX ABS BLACK 6.88"L X 4.88"W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WM071RI,BK |
|---|---|
| Area (L x W) | 33.6 in² |
| Area (L x W) | 217 cm² |
| Color | Black |
| Container Type | Box |
| Design | Cover Included |
| Features | Mounting Flange, Wall Mount, PCB Supports, Front Access |
| Height [z] | 27.94 mm |
| Height [z] | 1.1 in |
| Material | Plastic, ABS |
| Material Flammability Rating | UL94 HB |
| Ratings | IP40, NEMA 1 |
| Size / Dimension [x] | 174.75 mm |
| Size / Dimension [x] | 6.88 in |
| Size / Dimension [y] | 123.95 mm |
| Size / Dimension [y] | 4.88 in |
| Thickness | 2.54 mm |
| Thickness | 0.1 in |
| Weight | 0.347 lb |
| Weight | 157.4 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 20.11 | |
Description
General part information
WM071RI,BK

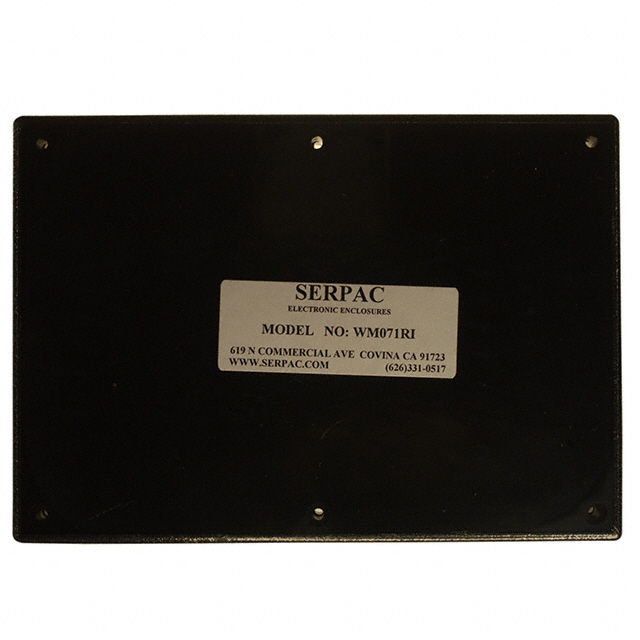

Box Plastic, ABS Black Cover Included 6.880" L x 4.880" W (174.75mm x 123.95mm) X 1.100" (27.94mm)
Documents
Technical documentation and resources
No documents available
