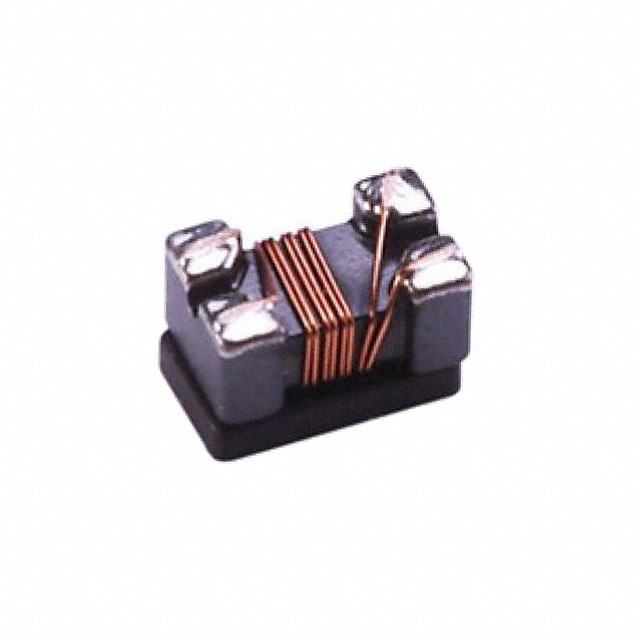

ACM-31-261M-T
ActiveAbracon LLC
CMC 310MA 2LN 260 OHM SMD
ACM-31-261M-T
ActiveAbracon LLC
CMC 310MA 2LN 260 OHM SMD
Description
General part information
ACM-31-261M-T
2 Line Common Mode Choke Surface Mount 260 Ohms @ 100 MHz 310mA DCR 500mOhm
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM-31-261M-T |
|---|---|
| Current Rating (Max) | 310 mA |
| DC Resistance (DCR) (Max) | 500 mOhm |
| Filter Type | Signal Line |
| Height (Max) | 0.079 in |
| Impedance | 260 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Name | Horizontal |
| Pad Count | 4 PC Pad |
| Size / Dimension Length | 0.118 in |
| Size / Dimension Width | 0.063 in |
| Voltage Rating - DC | 50 V |
