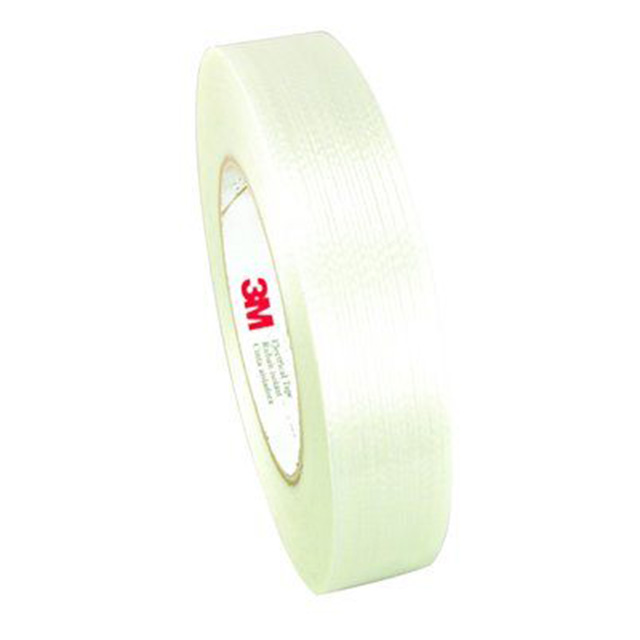

1339-1/2"X60YD

Active

TAPE ELECTRICAL TRANS 1/2"X60YDS

Search across all available documentation for this part.

Active

TAPE ELECTRICAL TRANS 1/2"X60YDS

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1339-1/2"X60YD	1339 Series

Adhesive	Acrylic	Acrylic, Rubber Thermosetting
Backing, Carrier	Polyester	Polyester, Polyester Film
Color	Translucent	Translucent, Yellow
Length	60 yds	60 - 72 yds
Length	55 m	55 - 66 m
Length	180 ft	180 - 216 ft
Shelf Life	-	60 Months
Shelf Life Start	Date of Manufacture	Date of Manufacture
Tape Type	Electrical	Electrical
Temperature Range [Max]	130 °C	130 °C
Temperature Range [Min]	0 °C	0 °C
Thickness	0.0065 in	0.0008 - 0.0065 in
Thickness	6.5 mils	0.8 - 6.5 mils
Thickness	0.165 mm	0.02 - 0.165 mm
Usage	-	General Purpose
Width	0.5 in	0.5 - 19.05 in
Width	12.7 mm	0.75 - 25 mm
Width	0.5 in	0.5 - 0.98 in

TAPE ELECTRICAL TRANS 1/2"X60YDS

Part	Temperature Range [Max]	Thickness	Thickness	Thickness	Width	Width	Width	Color	Adhesive	Length	Length	Length	Tape Type	Shelf Life Start	Backing, Carrier	Shelf Life	Usage
3M 1339-1/2"X60YD	130 °C	0.0065 in	6.5 mils	0.165 mm	0.5 in	12.7 mm	0.5 in	Translucent	Acrylic	60 yds	55 m	180 ft	Electrical	Date of Manufacture	Polyester
3M 1339MC1515MMX55M	130 °C	0.0008 in	0.8 mils	0.02 mm		25 mm	0.98 "	Yellow	Rubber Thermosetting	72 yd	66 m	216 ft	Electrical	Date of Manufacture	Polyester Film	60 Months	General Purpose
3M 1339-3/4"X60YD	130 °C	0.0065 in	6.5 mils	0.165 mm	19.05 mm	0.75 in	0.75 in	Translucent	Acrylic	60 yds	55 m	180 ft	Electrical	Date of Manufacture	Polyester

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Electrical Tape Acrylic Adhesive Translucent 0.50" (12.70mm) 1/2" X 180' (55.0m) 60 yds
