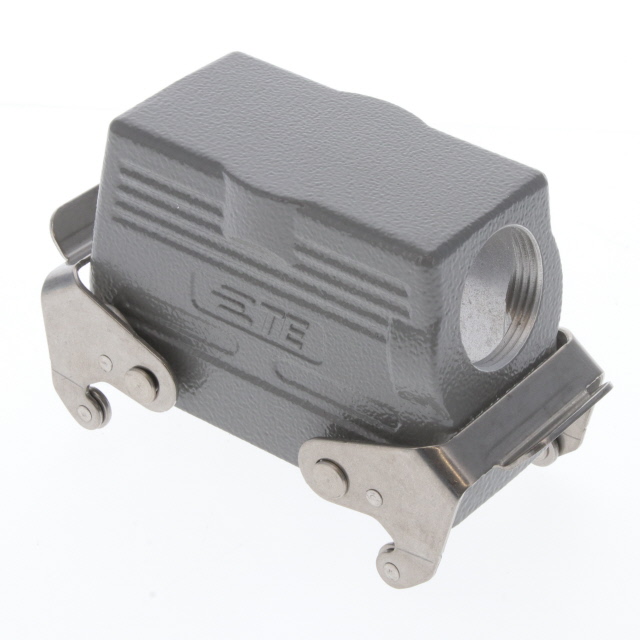

T1250163121-000
ActiveTE Connectivity AMP Connectors
H16B-TSBS-PG21
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
T1250163121-000
ActiveTE Connectivity AMP Connectors
H16B-TSBS-PG21
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T1250163121-000 | T125 Series |
|---|---|---|
| Connector Type | Hood | Hood |
| Housing Color | Gray | Gray |
| Housing Finish | Powder Coated | Powder Coated |
| Housing Material | Aluminum Alloy, Die Cast | Aluminum Alloy, Die Cast |
| Ingress Protection | IP65 - Dust Tight, Water Resistant | IP65 - Dust Tight, Water Resistant |
| Lock Location | Locking Clip (2) on Hood | Locking Clip (2) on Hood |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Size | H16B | H24B, H16B, H32B, H10B |
| Size / Dimension [x] | 93.5 mm | 73 - 120 mm |
| Size / Dimension [x] | 3.681 " | 2.874 - 4.724 " |
| Size / Dimension [y] | 1.693 in | 1.693 - 3.248 in |
| Size / Dimension [y] | 43 mm | 43 - 82.5 mm |
| Size / Dimension [z] | 60 mm | 60 - 76 mm |
| Size / Dimension [z] | 2.362 " | 2.362 - 2.992 " |
| Style | Side Entry | Side Entry |
| Thread Size | PG21 | M25, PG21, M32, PG16, M20, PG29 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.99 | |
| 10 | $ 11.74 | |||
| 25 | $ 11.43 | |||
| 50 | $ 11.00 | |||
T125 Series
H24B-TSBS-M25
| Part | Size | Thread Size | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Housing Material | Style | Ingress Protection | Housing Color | Housing Finish | Operating Temperature [Max] | Operating Temperature [Min] | Lock Location | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T1250243125-000 | H24B | M25 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250163121-000 | H16B | PG21 | 60 mm | 1.693 in | 43 mm | 2.362 " | 3.681 " | 93.5 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250322121-000 | H32B | PG21 | 76 mm | 3.248 in | 82.5 mm | 2.992 in | 3.701 " | 94 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250242132-000 | H24B | M32 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250163132-000 | H16B | M32 | 60 mm | 1.693 in | 43 mm | 2.362 " | 3.681 " | 93.5 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250243121-100 | H24B | PG21 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250243132-000 | H24B | M32 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250243125-100 | H24B | M25 | 60 mm | 1.693 in | 43 mm | 2.362 " | 4.724 " | 120 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250103116-000 | H10B | PG16 | 60 mm | 1.693 in | 43 mm | 2.362 " | 2.874 in | 73 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250103120-000 | H10B | M20 | 60 mm | 1.693 in | 43 mm | 2.362 " | 2.874 in | 73 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250103125-000 | H10B | M25 | 60 mm | 1.693 in | 43 mm | 2.362 " | 2.874 in | 73 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250322129-000 | H32B | PG29 | 76 mm | 3.248 in | 82.5 mm | 2.992 in | 3.701 " | 94 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250163125-000 | H16B | M25 | 60 mm | 1.693 in | 43 mm | 2.362 " | 3.681 " | 93.5 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
TE Connectivity AMP Connectors T1250162120-000 | H16B | M20 | 60 mm | 1.693 in | 43 mm | 2.362 " | 3.681 " | 93.5 mm | Aluminum Alloy, Die Cast | Side Entry | IP65 - Dust Tight, Water Resistant | Gray | Powder Coated | 125 °C | -40 °C | Locking Clip (2) on Hood | Hood |
Description
General part information
T125 Series
Hood Connector Side Entry PG21 H16B IP65 - Dust Tight, Water Resistant
