SAJ35XXSRLN49SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

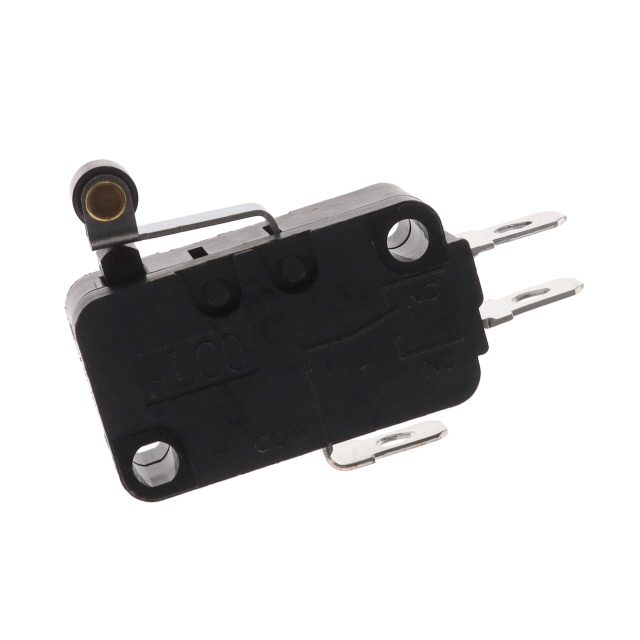

SAJ35XXSRLN49SDTSEQ

Active

TE Connectivity Raychem Cable Protection

SWITCH SNAP ACTION SPDT 5A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SAJ35XXSRLN49SDTSEQ

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Electrical Life	10000 Cycles
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	60 gf
Operating Position	20.7 mm
Operating Position	0.815 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.79 mm
Overtravel	0.031 in
Pretravel	0.063 in
Pretravel	1.6 mm
Release Force	4 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V

SAJ35X Series

Part	Pretravel	Pretravel	Voltage Rating - AC	Mechanical Life	Circuit	Mounting Type	Termination Style	Operating Position	Operating Position	Current Rating (Amps)	Differential Travel	Differential Travel	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Switch Function	Electrical Life	Operating Force	Overtravel	Overtravel	Release Force
TE Connectivity Raychem Cable Protection SAJ35XXPP0N49SDTFAQ	0.047 in	1.2 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.579 in	14.7 mm	5 A	0.016 "	0.4 mm	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	10000 Cycles	50 gf	0.039 in	1 mm
TE Connectivity Raychem Cable Protection SAJ35XXHL0N49SDTSEQ	0.157 in	4 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.598 in	15.2 mm	5 A	0.031 "	0.8 mm	85 °C	-40 °C	Lever Straight	On-Mom	10000 Cycles	30 gf	0.062 in	1.6 mm
TE Connectivity Raychem Cable Protection SAJ35XXSRLN49SDTFAQ	0.063 in	1.6 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.815 in	20.7 mm	5 A	0.02 in	0.5 mm	85 °C	-40 °C	Lever Roller	On-Mom	10000 Cycles	60 gf	0.031 in	0.79 mm	4 gf
TE Connectivity Raychem Cable Protection SAJ35XXHL0N49SDTFAQ	0.157 in	4 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Quick Connect - 0.187" (4.7mm)	0.598 in	15.2 mm	5 A	0.031 "	0.8 mm	85 °C	-40 °C	Lever Straight	On-Mom	10000 Cycles	30 gf	0.062 in	1.6 mm
TE Connectivity Raychem Cable Protection SAJ35XXPP0N49SDTSEQ	0.047 in	1.2 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.579 in	14.7 mm	5 A	0.016 "	0.4 mm	85 °C	-40 °C	Round (Pin Plunger)	On-Mom	10000 Cycles	50 gf	0.039 in	1 mm
TE Connectivity Raychem Cable Protection SAJ35XXSRLN49SDTSEQ	0.063 in	1.6 mm	125 V	5000000 Cycles	SPDT	Chassis Mount	Solder Lug	0.815 in	20.7 mm	5 A	0.02 in	0.5 mm	85 °C	-40 °C	Lever Roller	On-Mom	10000 Cycles	60 gf	0.031 in	0.79 mm	4 gf
