9458 060500

Active

Belden Inc.

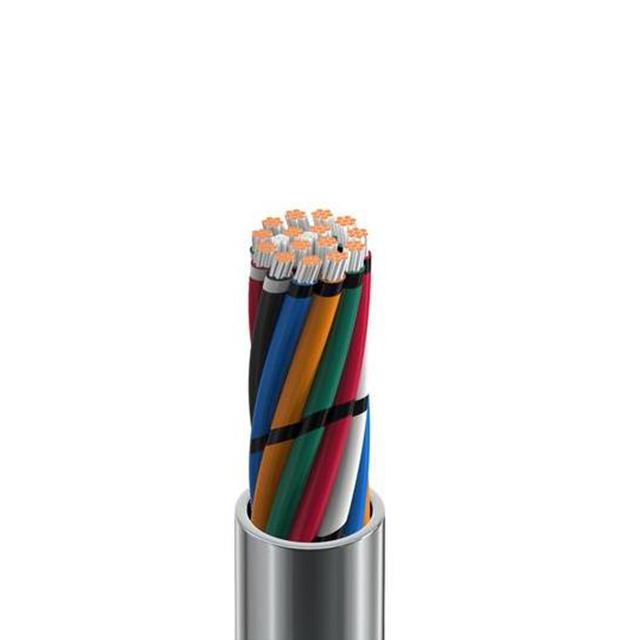

CABLE 15COND 20AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 15COND 20AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9458 060500

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	28
Conductor Strand [custom]	7
Jacket (Insulation) Diameter [diameter]	9.88 mm
Jacket (Insulation) Diameter [diameter]	0.389 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	0.04 in
Jacket (Insulation) Thickness	1.016 mm
Jacket Color	Chrome
Length [x]	500 '
Length [x]	152.4 m
Number of Conductors	15
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Ratings	UL Style 2464
Usage	Audio, Instrumentation, Control
Voltage	300 V
Wire Gauge	20 AWG

Part	Number of Conductors	Jacket Color	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Length [x]	Length [x]	Usage	Conductor Strand [custom]	Conductor Strand [custom]	Jacket (Insulation) Material	Ratings	Wire Gauge	Conductor Insulation	Operating Temperature [Min]	Operating Temperature [Max]	Voltage	Cable Type	Conductor Material	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Length	Length
Belden Inc. 9458 060500	15	Chrome	0.04 in	1.016 mm	500 '	152.4 m	Audio Control Instrumentation	28	7	Poly-Vinyl Chloride (PVC)	UL Style 2464	20 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C	300 V	Multi-Conductor	Copper Tinned	9.88 mm	0.389 in
Belden Inc. 9458 0601000	15	Chrome	0.04 in	1.016 mm			Audio Control Instrumentation	28	7	Poly-Vinyl Chloride (PVC)	UL Style 2464	20 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C	300 V	Multi-Conductor	Copper Tinned	9.88 mm	0.389 in	1000 ft	304.8 m
Belden Inc. 9458 060100	15	Chrome	0.04 in	1.016 mm	100 ft	30.5 m	Audio Control Instrumentation	28	7	Poly-Vinyl Chloride (PVC)	UL Style 2464	20 AWG	Poly-Vinyl Chloride (PVC)	-20 C	80 C		Multi-Conductor	Copper Tinned	9.88 mm	0.389 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	500	$ 7.70

General part information

15 Conductor Multi-Conductor Cable Chrome 20 AWG 500.0' (152.4m)
