3-1393303-4
ActiveTE Connectivity AMP Connectors

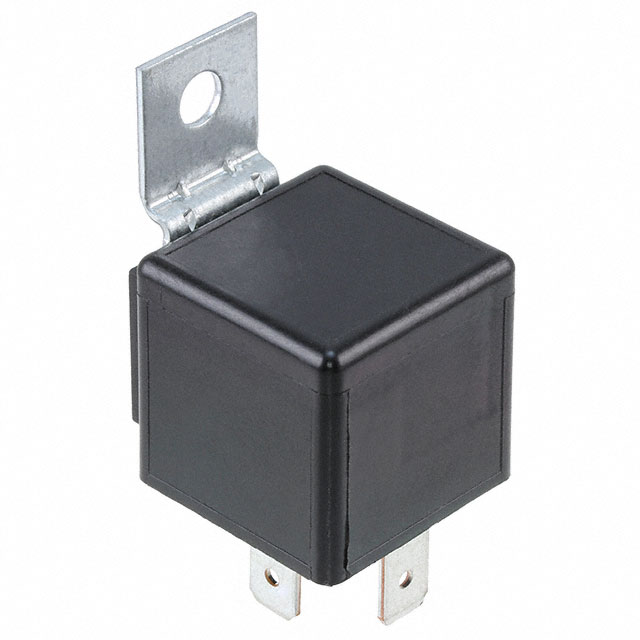

RELAY AUTOMOTIVE SPST-NO 60A 12V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3-1393303-4
ActiveTE Connectivity AMP Connectors
RELAY AUTOMOTIVE SPST-NO 60A 12V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 3-1393303-4 | 1393303 Series |
|---|---|---|
| Coil Current | - | 74.1 - 133.3 mA |
| Coil Power | 1.6 W | 1.6 - 1.8 W |
| Coil Resistance | 90 Ohms | 90 - 324 Ohms |
| Coil Type | Non Latching | Non Latching |
| Coil Voltage | 12 VDC | 12 - 24 VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Material | Silver Alloy | Silver Alloy |
| Contact Rating (Current) | 60 A | 20 - 70 A |
| Mounting Type | Chassis Mount | Socketable, Chassis Mount |
| Must Operate Voltage | 7.2 VDC | 7.2 - 14.4 VDC |
| Must Release Voltage | 1.6 VDC | 1.6 - 3.2 VDC |
| Operate Time | 7 ms | 7 ms |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -40 °C | -40 °C |
| Release Time | 2 ms | 2 ms |
| Switching Voltage | - | 14 - 28 VDC |
| Termination Style | Plug In, Quick Connect - 0.250" (6.3mm) | Plug In, Multiple Sizes, Quick Connect, Plug In, Quick Connect - 0.250" (6.3mm) |
1393303 Series
RELAY AUTOMOTIVE SPST-NO 70A 24V
| Part | Mounting Type | Contact Form | Must Release Voltage | Coil Voltage | Coil Resistance | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Coil Power | Release Time | Coil Type | Switching Voltage | Must Operate Voltage | Termination Style | Contact Rating (Current) | Operate Time | Coil Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors 9-1393303-7 | Socketable | SPST-NO (1 Form A) | 3.2 VDC | 24 VDC | 324 Ohms | 125 °C | -40 °C | Silver Alloy | 1.8 W | 2 ms | Non Latching | 24 VDC | 14.4 VDC | Multiple Sizes, Plug In, Quick Connect | 70 A | 7 ms | |
TE Connectivity AMP Connectors 4-1393303-7 | Chassis Mount | SPST-NO (1 Form A) | 1.6 VDC | 12 VDC | 90 Ohms | 125 °C | -40 °C | Silver Alloy | 1.6 W | 2 ms | Non Latching | 14 VDC | 7.2 VDC | 40 A | 7 ms | 133.3 mA | |
TE Connectivity AMP Connectors 5-1393303-0 | Chassis Mount | SPST-NO (1 Form A) | 3.2 VDC | 24 VDC | 324 Ohms | 125 °C | -40 °C | Silver Alloy | 1.8 W | 2 ms | Non Latching | 28 VDC | 14.4 VDC | 20 A | 7 ms | 74.1 mA | |
TE Connectivity AMP Connectors 3-1393303-4 | Chassis Mount | SPST-NO (1 Form A) | 1.6 VDC | 12 VDC | 90 Ohms | 125 °C | -40 °C | Silver Alloy | 1.6 W | 2 ms | Non Latching | 7.2 VDC | Plug In, Quick Connect - 0.250" (6.3mm) | 60 A | 7 ms |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.90 | |
| 5 | $ 12.88 | |||
| 10 | $ 12.46 | |||
| 25 | $ 11.93 | |||
Description
General part information
1393303 Series
RELAY AUTOMOTIVE SPST-NO 60A 12V
