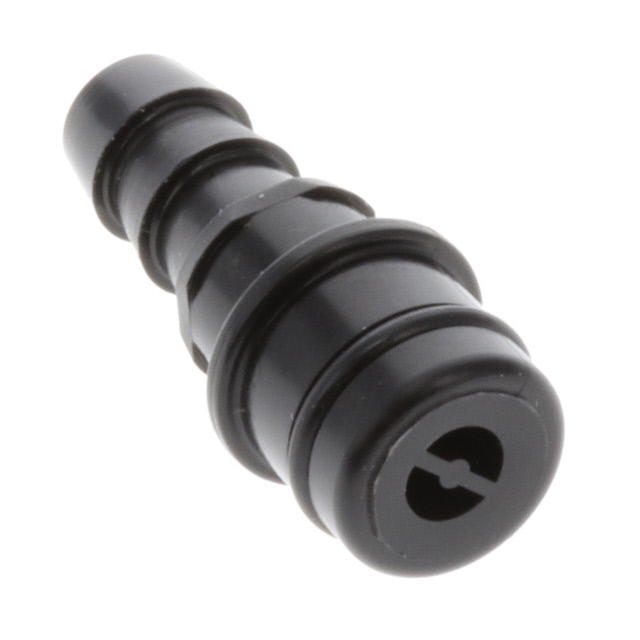

T2090002101-004
ActiveTE Connectivity AMP Connectors
PNEU-C-M6.0
Deep-Dive with AI
Search across all available documentation for this part.
T2090002101-004
ActiveTE Connectivity AMP Connectors
PNEU-C-M6.0
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | T2090002101-004 | T209 Series |
|---|---|---|
| Contact Finish | - | Silver |
| Contact Material | - | Copper Alloy |
| Current Rating (Amps) | - | 16 - 100 A |
| Gender | - | Male, Female |
| Housing Material | - | Polycarbonate (PC) |
| Material Flammability Rating | - | UL94 V-0 |
| Operating Temperature | - | 125 °C |
| Operating Temperature | - | -40 °C |
| Pin or Socket | Pin | Socket Module, Socket, Pin |
| Size | - | H24B |
| Termination Style | - | Screw |
| Type | Pneumatic | Pneumatic |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.40 | |
| 10 | $ 6.69 | |||
| 25 | $ 6.51 | |||
| 50 | $ 6.26 | |||
| 100 | $ 6.23 | |||
T209 Series
PNEU-C-FW3.0
| Part | Pin or Socket | Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Finish | Current Rating (Amps) | Housing Material | Termination Style | Size | Gender | Material Flammability Rating | Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors T2090012201-002 | Socket Module | Pneumatic | ||||||||||
TE Connectivity AMP Connectors T2090002201-003 | Socket | Pneumatic | ||||||||||
TE Connectivity AMP Connectors T2093362101-000 | 125 °C | -40 °C | Silver | 16 A, 40 A, 100 A | Polycarbonate (PC) | Screw | H24B | Male | UL94 V-0 | Copper Alloy | ||
TE Connectivity AMP Connectors T2090002101-004 | Pin | Pneumatic | ||||||||||
TE Connectivity AMP Connectors T2090002201-002 | Socket | Pneumatic | ||||||||||
TE Connectivity AMP Connectors T2090012201-003 | Socket | Pneumatic | ||||||||||
TE Connectivity AMP Connectors T2093362201-000 | 125 °C | -40 °C | Silver | 16 A, 40 A, 100 A | Polycarbonate (PC) | Screw | H24B | Female | UL94 V-0 | Copper Alloy |
Description
General part information
T209 Series
Contact Pin
