A10WBC-P16MBC0-0000

Active

ODU

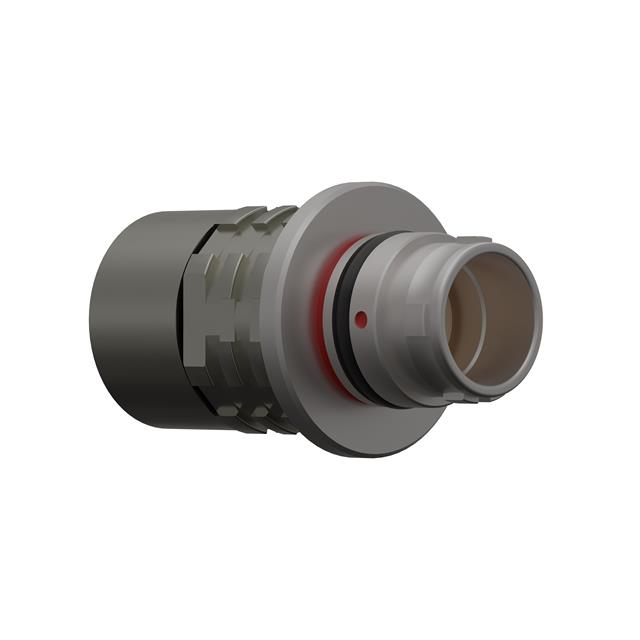

CONN PLUG MALE 16POS SOLDER CUP

Search across all available documentation for this part.

Active

ODU

CONN PLUG MALE 16POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	A10WBC-P16MBC0-0000

Applications	Medical, Industrial, Military
Cable Opening [custom]	0.276 in
Cable Opening [custom]	7 mm
Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Fastening Type	Detent Lock, Push-Pull
Features	Backshell
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions	16
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-51 °C
Orientation	B
Primary Material	Metal
Shell Finish	Chrome
Shell Material	Brass
Shell Size - Insert	0
Shielding	Shielded
Voltage Rating	250 VDC

CONN PLUG MALE 16POS SOLDER CUP

Part	Shell Size - Insert	Applications	Contact Finish - Mating	Shielding	Connector Type	Fastening Type	Primary Material	Ingress Protection	Color	Operating Temperature [Min]	Operating Temperature [Max]	Cable Opening [custom]	Cable Opening [custom]	Features	Number of Positions	Shell Finish	Shell Material	Mounting Type	Orientation	Voltage Rating
ODU A10WBC-P16MBC0-0000	0	Industrial, Medical, Military	Gold	Shielded	Male Pins, Plug	Detent Lock, Push-Pull	Metal	IP68 - Dust Tight, Waterproof	Silver	-51 °C	125 °C	0.276 in	7 mm	Backshell	16	Chrome	Brass	Free Hanging (In-Line)	B	250 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

16 Position Circular Connector Plug, Male Pins Solder Cup
