1619593
ActivePhoenix Contact
CONN PLUG FMALE 12P SOLDER CUP
1619593
ActivePhoenix Contact
CONN PLUG FMALE 12P SOLDER CUP
Description
General part information
1619593

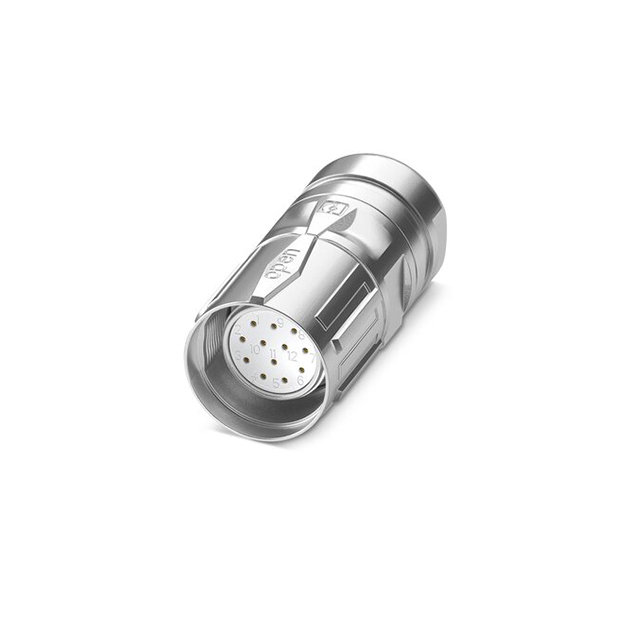

12 (Power) Position Circular Connector Plug, Female Sockets Solder Cup
Technical Specifications
Parameters and characteristics for this part
| Specification | 1619593 |
|---|---|
| Cable Opening (Max) | 0.571 in |
| Cable Opening (Min) | 0.118 in |
| Color | Silver |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Zinc |
| Fastening Type | Push-Twist |
| Features | Coupling Nut, Backshell |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Insert Material | PBT, Polybutylene Terephthalate |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | N (Normal) |
| Position Types | Power |
| Primary Material | Metal |
| Shell Material | Gadolinium-Zinc |
| Shell Size - Insert | M23-12 |
| Shielding | Shielded |
| Termination | Solder Cup |
