DCE.91.050.0VC
ActiveLEMO

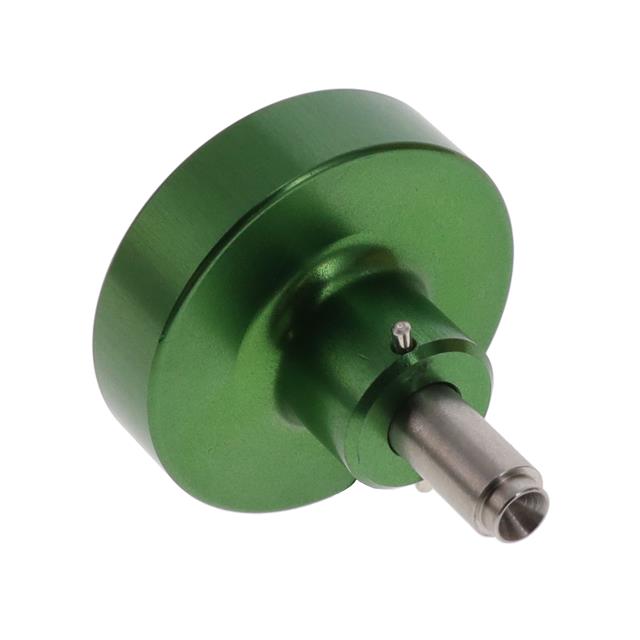

TOOL POSITIONER FOR CRIMP PIN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DCE.91.050.0VC
ActiveLEMO
TOOL POSITIONER FOR CRIMP PIN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | DCE.91.050.0VC | DCE.91 Series |
|---|---|---|
| Cable Group | - | RG-174, 188, 316 |
| Compatible Tools | DPC.91.701.V, DPC.91.701.C | DPC.91.701.V, DPC.91.701.C, DPC.91.101.A |
| For Use With/Related Products | Contacts, 28-32 AWG | Contacts, 22-32 AWG, Contacts, Circular Contacts, 20-26 AWG, Contacts, 28-32 AWG, Circular Contacts, Circular Contacts, 28-32 AWG, Coaxial, RF Contacts, Circular Contacts, 18-20 AWG, Circular Contacts, 22-26 AWG, Circular Contacts, 12-18 AWG, Circular Contacts, 16-20 AWG, Fiber Optic Contacts, Circular Contacts, 22-32 AWG |
| For Use With/Related Products | - | 14 - 26 AWG |
| For Use With/Related Products | - | 10 - 20 AWG |
| Tool Type | Positioner | Positioner, Turret Head |
DCE.91 Series
TOOL POSITIONER FOR CRIMP PIN
| Part | Tool Type | For Use With/Related Products | Compatible Tools | For Use With/Related Products [Max] | For Use With/Related Products [Min] | Cable Group |
|---|---|---|---|---|---|---|
LEMO DCE.91.071.BVC | Positioner | Contacts, 22-32 AWG | DPC.91.701.C, DPC.91.701.V | |||
LEMO DCE.91.131.BVC | Positioner | Contacts | DPC.91.701.C, DPC.91.701.V | 24 AWG | 18 AWG | |
LEMO DCE.91.094.BVM | Positioner | Circular Contacts, 20-26 AWG | DPC.91.701.C, DPC.91.701.V | |||
LEMO DCE.91.050.0VC | Positioner | Contacts, 28-32 AWG | DPC.91.701.C, DPC.91.701.V | |||
LEMO DCE.91.092.BVM | Positioner | Contacts | DPC.91.701.C, DPC.91.701.V | 26 AWG | 20 AWG | |
LEMO DCE.91.303.BVCM | Turret Head | Circular Contacts | DPC.91.701.V | 14 AWG | 10 AWG | |
LEMO DCE.91.133.BVM | Positioner | Contacts | DPC.91.701.C, DPC.91.701.V | 20 AWG | 18 AWG | |
LEMO DCE.91.133.BVC | Positioner | Contacts | DPC.91.701.C, DPC.91.701.V | 24 AWG | 18 AWG | |
LEMO DCE.91.071.FVM | Positioner | Contacts, 22-32 AWG | DPC.91.701.C, DPC.91.701.V | |||
LEMO DCE.91.090.AVC | Positioner | Circular Contacts, 28-32 AWG | DPC.91.701.C, DPC.91.701.V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 119.05 | |
| 5 | $ 111.84 | |||
| 10 | $ 108.23 | |||
| 25 | $ 104.62 | |||
Description
General part information
DCE.91 Series
Tool Positioner For Contacts, 28-32 AWG
Documents
Technical documentation and resources
