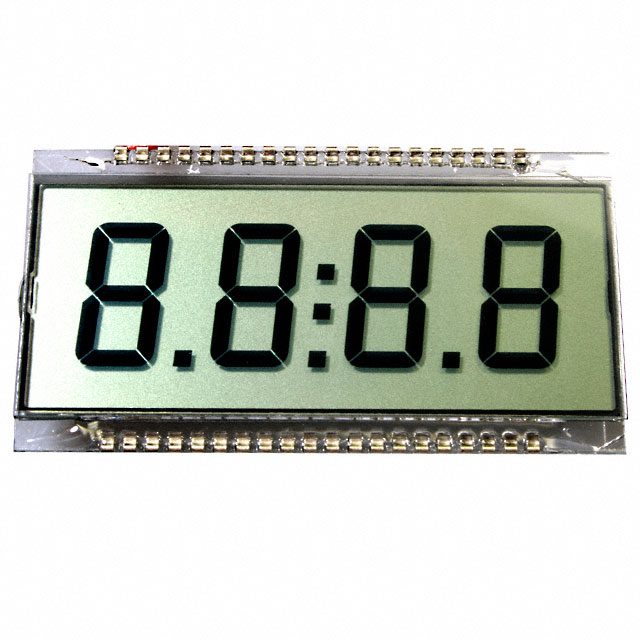

LCD-S401C71TR

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Deep-Dive with AI

Search across all available documentation for this part.

LCD-S401C71TR

Active

Lumex Opto/Components Inc.

LCD MOD 4 DIG 4 X 1 REFLECTIVE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.13
		10	$ 3.60
		80	$ 2.87
		440	$ 2.70

Description

General part information

LCD-S401 Series

Character Display Module Reflective 7-Segment TN - Twisted Nematic Without Backlight 69.85mm x 38.10mm x 2.80mm

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	LCD-S401C71TR	LCD-S401 Series

	-	-
Background Color	Gray	Gray
Backlight	Without Backlight	Without Backlight
Character Format	7-Segment	7-Segment
Character Size [y]	9 mm	2.31 - 9 mm
Character Size [z]	18 mm	4.42 - 18 mm
Display Format [x]	4	4
Display Format [y]	1	1
Display Mode	Reflective	Transflective, Reflective
Display Type	TN - Twisted Nematic	TN - Twisted Nematic, LCD - Color
Number of Characters	4	4
Outline L x W x H [x]	69.85 mm	20.32 - 69.85 mm
Outline L x W x H [y]	38.1 mm	10.16 - 38.1 mm
Outline L x W x H [z]	2.8 mm	1.8 - 2.8 mm
Viewing Area [x]	62.23 mm	17.92 - 62.23 mm
Viewing Area [y]	22.86 mm	5.28 - 22.86 mm
Voltage - Supply	-	3 V
Voltage - Supply	-	5 V
Voltage - Supply	-	3 V

LCD-S401 Series

LCD MOD 4DIG 4 X 1 TRANSFLECTIVE

Part	Display Format [y]	Display Format [x]	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Character Format	Viewing Area [x]	Viewing Area [y]	Display Type	Character Size [z]	Character Size [y]	Number of Characters	Display Mode	Background Color	Backlight	Voltage - Supply	Voltage - Supply [Max]	Voltage - Supply [Min]
Lumex Opto/Components Inc. LCD-S401M16TF	1	4	10.16 mm	2.8 mm	20.32 mm	7-Segment	17.92 mm	5.28 mm	TN - Twisted Nematic	4.42 mm	2.31 mm	4	Transflective	Gray	Without Backlight
Lumex Opto/Components Inc. LCD-S401M16KF/W3	1	4	10.16 mm	2.8 mm	20.32 mm	7-Segment	17.92 mm	5.28 mm	TN - Twisted Nematic	4.42 mm	2.31 mm	4	Transflective	Gray	Without Backlight	3 V
Lumex Opto/Components Inc. LCD-S401C39TF	1	4	24.64 mm	1.8 mm	50.8 mm	7-Segment	43.18 mm	12.7 mm	LCD - Color			4	Transflective	Gray
Lumex Opto/Components Inc. LCD-S401C39TR	1	4				7-Segment	43.18 mm	12.7 mm	TN - Twisted Nematic	9.92 mm	6.35 mm	4	Reflective	Gray	Without Backlight
Lumex Opto/Components Inc. LCD-S401C71TF-1	1	4	38.1 mm	2.8 mm	69.85 mm	7-Segment	62.23 mm	22.86 mm	TN - Twisted Nematic	18 mm	9 mm	4	Transflective	Gray	Without Backlight
Lumex Opto/Components Inc. LCD-S401C52TR-49	1	4	30.48 mm	2.8 mm	50.8 mm	7-Segment	45.72 mm	17.78 mm	TN - Twisted Nematic			4	Reflective	Gray	Without Backlight
Lumex Opto/Components Inc. LCD-S401C52TR	1	4	30.48 mm	2.8 mm	50.8 mm	7-Segment	45.72 mm	17.78 mm	TN - Twisted Nematic	13.2 mm	7.62 mm	4	Reflective	Gray	Without Backlight		5 V	3 V
Lumex Opto/Components Inc. LCD-S401C52TF
Lumex Opto/Components Inc. LCD-S401C71TR	1	4	38.1 mm	2.8 mm	69.85 mm	7-Segment	62.23 mm	22.86 mm	TN - Twisted Nematic	18 mm	9 mm	4	Reflective	Gray	Without Backlight
Lumex Opto/Components Inc. LCD-S401M16KR	1	4	10.16 mm	2.8 mm	20.32 mm	7-Segment	17.92 mm	5.28 mm	TN - Twisted Nematic	4.42 mm	2.31 mm	4	Reflective	Gray	Without Backlight	3 V
