Evaluation Kit, SABRE Platform, i.MX 6Quad Processor, 10.1" Multi-Touch Display, HDMI, Ethernet"

MCIMX6Q-SDP

Active

NXP USA Inc.

EVALUATION KIT, SABRE PLATFORM, I.MX 6QUAD PROCESSOR, 10.1" MULTI-TOUCH DISPLAY, HDMI, ETHERNET"

Find alt

Alpha

MCIMX6Q-SDP

Active

NXP USA Inc.

EVALUATION KIT, SABRE PLATFORM, I.MX 6QUAD PROCESSOR, 10.1" MULTI-TOUCH DISPLAY, HDMI, ETHERNET"

Find alt

Alpha

Description Specifications Series Pricing CAD Documents

Description

General part information

MCIMX6 Series

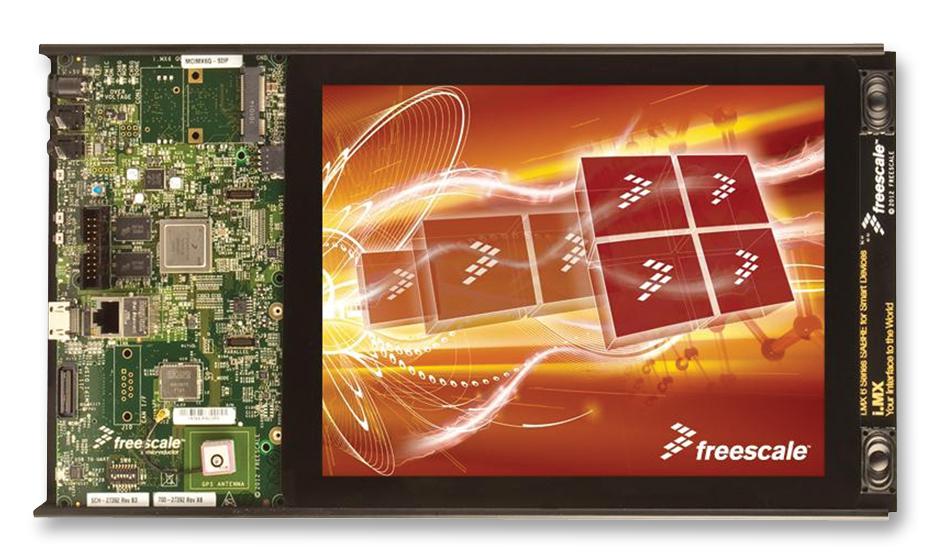

The MCIMX6Q-SDP is a SABRE platform for smart devices based on i.MX 6Quad processor. The i.MX 6Quad encompasses a quad core platform running up to 1.2GHz with 1MB of L2 cache and 64bit DDR3 or 2 channel, 32bit LPDDR2 support. Integrated FlexCAN, MLB busses, PCI Express and SATA-2 provide excellent connectivity. The smart application blueprint for rapid engineering (SABRE) platform for smart devices is the latest in a series of high performance, highly integrated development kits. The SABRE platform for smart devices can be targeted towards any device requiring an intelligent display, connectivity, low power consumption and an amazing user experience and comes equipped with i.MX 6Quad processor. Broad operating system support includes Android, Linux and Windows Embedded. Targeted for any device requiring an intelligent display, connectivity, low power and amazing user experience, the SABRE platform for smart devices provide a foundation for enabling new product designs in markets.

Technical Specifications

Parameters and characteristics for this part

Specification	MCIMX6Q-SDP

Board Type	Evaluation Platform
Contents	Cable, Board, LCD, Power Supply
Core Processor	ARM® Cortex®-A9
Mounting Type	Fixed
Platform	SABRE
Type	MPU
Utilized IC / Part	i.MX 6Quad

MCIMX6 Series

...

Part	Display & Interface Controllers	Bus Width	Number of Cores	Voltage - I/O (Option 2)	Voltage - I/O (Option 4)	Voltage - I/O (Option 3)	Voltage - I/O (Option 1)	Security Features	Core Processor	Package Length	Package Name	Package Width	Graphics Acceleration	Operating Temperature (Max)	Operating Temperature (Min)	Package / Case	USB 2.0 PHY Count	USB	Mounting Type	RAM Controllers	Co-Processors/DSP	Additional Interfaces	Speed	Ethernet Ports	Ethernet Speed Options	SATA Speed	SATA Interface	SATA Port Count	USB OTG Count
NXP USA Inc. MCIMX6U1AVM08AC	HDMI Keypad LCD LVDS MIPI	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ MPE	Bluetooth CANbus ESAI I2C I2S MMC/SD/SDIO SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6Q4AVT08ACR	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6S6AVM08AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP4AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6Q5EZK08AE	Keypad LCD	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	12 mm	569-MAPBGA	12 mm	Yes	105 °C	-20 °C	569-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	800 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1
NXP USA Inc. MCIMX6X2EVN10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.15 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SNVS System JTAG TVDECODE	ARM® Cortex®-A9 ARM® Cortex®-M4	17 mm	400-MAPBGA	17 mm	Yes	105 °C	-20 °C	400-LFBGA	1 count	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ MPE	AC'97 CAN I2C I2S MMC/SD/SDIO PCIe SAI SPDIF SPI SSI UART	1 GHz 227 MHz	2	1000Mbps 100Mbps 10Mbps				2 count
NXP USA Inc. MCIMX6S5EVM10AC	Keypad LCD	32 Bit	1 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	105 °C	-20 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6U6AVM10AC	Keypad LCD	32 Bit	2 Core	2.5 V	3.3 V	2.8 V	1.8 V	ARM TZ Boot Security Cryptography RTIC Secure Fusebox Secure JTAG Secure Memory Secure RTC Tamper Detection	ARM® Cortex®-A9	21 mm	624-MAPBGA	21 mm	Yes	125 °C	-40 °C	624-LFBGA	4 count	USB 2.0 + PHY	Surface Mount	DDR3 LPDDR2 LVDDR3	Multimedia NEON™ SIMD	CAN I2C I2S MMC/SD/SDIO SAI SPI SSI UART	1 GHz	1	1000Mbps 100Mbps 10Mbps
NXP USA Inc. MCIMX6QP6AVT8ABR	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
NXP USA Inc. MCIMX6QP6AVT8AB	HDMI Keypad LCD LVDS MIPI/DSI Parallel	32 Bit	4 Core	2.5 V	3.3 V	2.8 V	1.8 V	A-HAB ARM TZ CAAM CSU SJC SNVS	ARM® Cortex®-A9	21 mm	624-FCBGA	21 mm	Yes	125 °C	-40 °C	624-FBGA FCBGA	3	USB 2.0 + PHY USB 2.0 OTG + PHY	Surface Mount	DDR3 DDR3L LPDDR2	Multimedia NEON™ SIMD	CAN EBI EMI I2C I2S MMC/SD/SDIO S/PDIF SAI SPI SSI UART	852 MHz	1	1000Mbps 100Mbps 10Mbps	3 Gbps	SATA	1	1 count
