140787-2

Active

TE Connectivity AMP Connectors

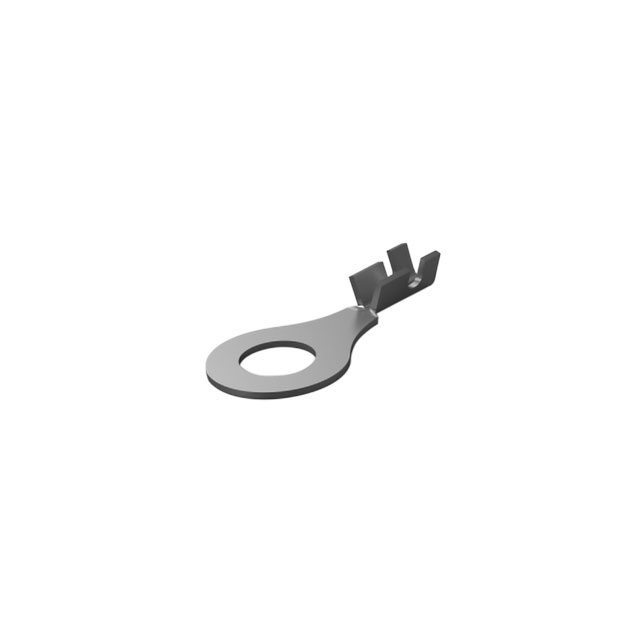

CONN RING CIRC 16-22AWG CRIMP

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN RING CIRC 16-22AWG CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	140787-2

Contact Finish	Tin
Contact Material	Brass
Insulation	Non-Insulated
Insulation Diameter [Max] [diameter]	0.118 in
Insulation Diameter [Max] [diameter]	3 mm
Insulation Diameter [Min] [diameter]	0.059 "
Insulation Diameter [Min] [diameter]	1.5 mm
Length - Overall [x]	24.8 mm
Length - Overall [x]	0.976 in
Mounting Type	Free Hanging (In-Line)
Terminal Type	Circular
Termination	Crimp
Thickness	0.64 mm
Thickness	0.025 in
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	16 AWG

CONN RING CIRC 16-22AWG CRIMP

Part	Contact Material	Thickness	Thickness	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Length - Overall [x]	Length - Overall [x]	Terminal Type	Termination	Mounting Type
TE Connectivity AMP Connectors 140787-2	Brass	0.64 mm	0.025 in	0.059 "	0.118 in	3 mm	1.5 mm	Non-Insulated	22 AWG	16 AWG	Tin	24.8 mm	0.976 in	Circular	Crimp	Free Hanging (In-Line)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Ring Terminal Connector Circular 16-22 AWG Crimp
