EVA-JQKR15Y14
ObsoletePanasonic Electronic Components

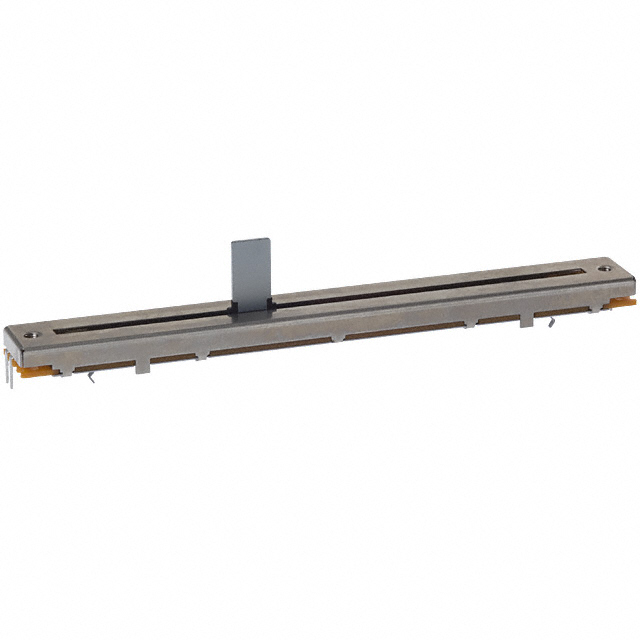

SLIDE POT 10KOHM 0.25W TOP 100MM
EVA-JQKR15Y14
ObsoletePanasonic Electronic Components
SLIDE POT 10KOHM 0.25W TOP 100MM
Description
General part information
EVA-JQKR15Y14
10 kOhms 0.25W, 1/4W Through Hole Slide Potentiometer Top Adjustment Type
Technical Specifications
Parameters and characteristics for this part
| Specification | EVA-JQKR15Y14 |
|---|---|
| Adjustment Type | Top |
| Fader Type | Standard |
| Mounting Type | Through Hole |
| Power (Watts) | 250 mW |
| Power (Watts) Options | 1/4W |
| Resistance | 10 kOhm |
| Size / Dimension Height | 0.315 in |
| Size / Dimension Length | 5.039 in |
| Size / Dimension Shape | Rectangular |
| Size / Dimension Width | 0.591 in |
| Tolerance (Negative) | 20 % |
| Tolerance (Positive) | 40 % |
| Travel Range | 100 mm |
