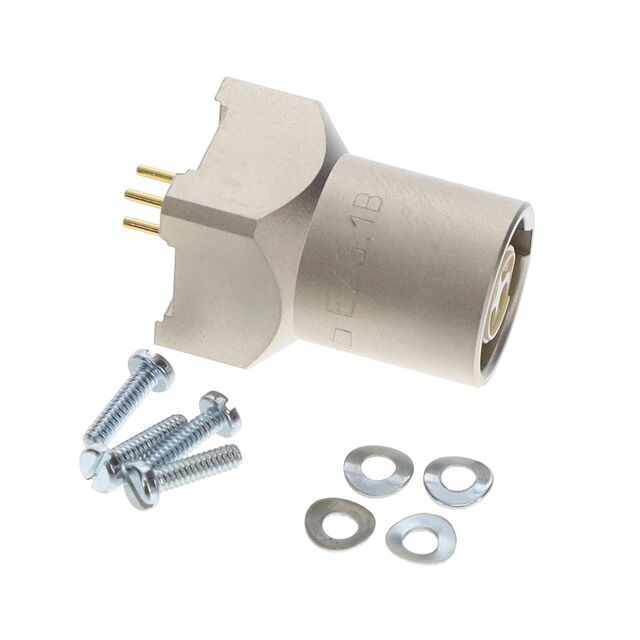

EZG.1B.304.NLN
ActiveLEMO
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EZG.1B.304.NLN
ActiveLEMO
CONN RCPT FMALE 4POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | EZG.1B.304.NLN | EZG.1B Series |
|---|---|---|
| Color | Silver | Silver |
| Connector Type | Receptacle, Female Sockets | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold | Gold |
| Contact Finish Thickness - Mating | 59 Áin | 59 Áin |
| Contact Finish Thickness - Mating | 1.5 Ám | 1.5 Ám |
| Contact Material | Bronze | Bronze |
| Current Rating (Amps) | 10 A | 1.5 - 10 A |
| Fastening Type | Push-Pull | Push-Pull |
| Ingress Protection | IP50 | IP50 |
| Insert Material | Polyetheretherketone (PEEK) | Polyetheretherketone (PEEK) |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole |
| Number of Positions | 4 | 4 - 14 |
| Number of Positions | - | 16 |
| Operating Temperature [Max] | 250 °C | 250 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Orientation | G | G |
| Primary Material | Metal | Metal |
| Shell Finish | Nickel | Chrome, Nickel |
| Shell Material | Brass | Brass |
| Shell Size - Insert | 304 | 304 - 316 |
| Shielding | Shielded | Shielded |
| Termination | Solder | Solder |
EZG.1B Series
CONN RCPT FMALE 14POS GOLD SLDR
| Part | Shell Size - Insert | Connector Type | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Primary Material | Shell Finish | Shielding | Number of Positions | Current Rating (Amps) | Color | Ingress Protection | Orientation | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Termination | Mounting Type | Contact Material | Shell Material | Insert Material | Fastening Type | Contact Finish - Mating | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
LEMO EZG.1B.314.CLN | 314 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 14 | 2 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.307.CLN | 307 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 7 | 7 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.316.CLN | 316 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 1.5 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | 16 | |
LEMO EZG.1B.307.NLN | 307 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Nickel | Shielded | 7 | 7 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.304.NLN | 304 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Nickel | Shielded | 4 | 10 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.308.NLN | 308 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Nickel | Shielded | 8 | 5 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.308.CLN | 308 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 8 | 5 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.304.CLN | 304 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 4 | 10 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold | |
LEMO EZG.1B.310.CLN | 310 | Receptacle, Female Sockets | UL94 V-0 | -55 °C | 250 °C | Metal | Chrome | Shielded | 10 | 2.5 A | Silver | IP50 | G | 59 Áin | 1.5 Ám | Solder | Through Hole | Bronze | Brass | Polyetheretherketone (PEEK) | Push-Pull | Gold |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 43.23 | |
| 10 | $ 39.67 | |||
| 25 | $ 38.15 | |||
| 50 | $ 36.88 | |||
| 100 | $ 34.84 | |||
| 250 | $ 33.82 | |||
Description
General part information
EZG.1B Series
4 Position Circular Connector Receptacle, Female Sockets Solder
