A3AKB-3406M
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASC34B/AE34M/APK34B
Deep-Dive with AI
Search across all available documentation for this part.
A3AKB-3406M
ActiveTE Connectivity AMP Connectors
IDC CABLE - ASC34B/AE34M/APK34B
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A3AKB-3406M | A3AKB Series |
|---|---|---|
| Cable Termination | IDC | IDC |
| Color | Ribbon, Multiple | Ribbon, Multiple |
| Connector Type | Socket to Plug | Socket to Plug |
| Contact Finish | Gold | Gold |
| Contact Finish Thickness | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness | 30 Áin | 30 Áin |
| Features | Polarizing Key | Polarizing Key |
| Length | 152.4 mm | 152.4 mm |
| Length | 6 " | 6 " |
| Length | 0.5 ' | 0.5 ' |
| Length | - | 457.2 - 914.4 mm |
| Length | - | 1.5 - 3 ft |
| Number of Positions | 34 | 10 - 50 |
| Number of Positions | - | 16 |
| Number of Rows | 2 | 2 |
| Pitch - Cable | 0.05 " | 0.05 " |
| Pitch - Cable | 1.27 mm | 1.27 mm |
| Pitch - Connector | 0.1 in | 0.1 in |
| Pitch - Connector | 2.54 mm | 2.54 mm |
| Shielding | Unshielded | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 22.03 | |
| 10 | $ 18.25 | |||
| 25 | $ 16.94 | |||
| 50 | $ 16.01 | |||
| 100 | $ 15.14 | |||
| 250 | $ 14.06 | |||
| 500 | $ 13.30 | |||
A3AKB Series
IDC CABLE - ASC50B/AE50G/APK50B
| Part | Pitch - Connector | Pitch - Connector | Number of Rows | Pitch - Cable | Pitch - Cable | Shielding | Contact Finish Thickness | Contact Finish Thickness | Contact Finish | Connector Type | Cable Termination | Number of Positions | Length [x] | Length [x] | Features | Length | Length | Length | Color | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity AMP Connectors A3AKB-5018G | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 50 | 457.2 mm | 1.5 ft | Polarizing Key | |||||
TE Connectivity AMP Connectors A3AKB-2006M | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 20 | Polarizing Key | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3AKB-1606G | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | Polarizing Key | 152.4 mm | 6 " | 0.5 ' | 16 | ||||
TE Connectivity AMP Connectors A3AKB-5018M | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 50 | 457.2 mm | 1.5 ft | Polarizing Key | Multiple, Ribbon | ||||
TE Connectivity AMP Connectors A3AKB-1606M | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | Polarizing Key | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | 16 | |||
TE Connectivity AMP Connectors A3AKB-2018G | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 20 | 457.2 mm | 1.5 ft | Polarizing Key | |||||
TE Connectivity AMP Connectors A3AKB-4036G | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 40 | 914.4 mm | 3 ft | Polarizing Key | |||||
TE Connectivity AMP Connectors A3AKB-3406M | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 34 | Polarizing Key | 152.4 mm | 6 " | 0.5 ' | Multiple, Ribbon | |||
TE Connectivity AMP Connectors A3AKB-1618G | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 457.2 mm | 1.5 ft | Polarizing Key | 16 | |||||
TE Connectivity AMP Connectors A3AKB-1436M | 0.1 in | 2.54 mm | 2 | 0.05 " | 1.27 mm | Unshielded | 0.76 Ám | 30 Áin | Gold | Socket to Plug | IDC | 14 | 914.4 mm | 3 ft | Polarizing Key | Multiple, Ribbon |
Description
General part information
A3AKB Series

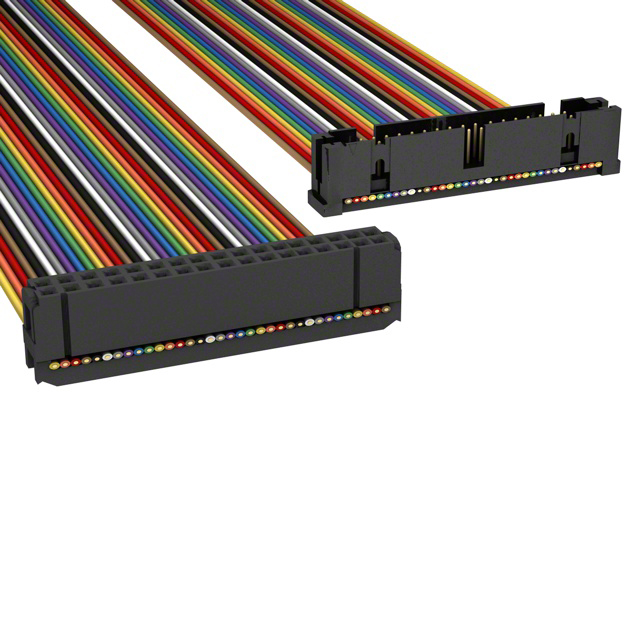

34 Position Cable Assembly Rectangular Socket to Plug 0.500' (152.40mm, 6.00")
