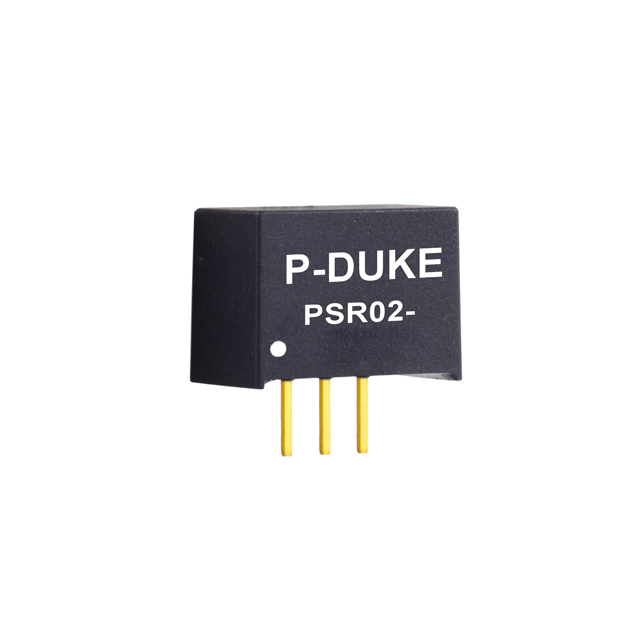

PSR02-12S2P5
ActiveP-DUKE Technology
DC DC CONVERTER 2.5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSR02-12S2P5
ActiveP-DUKE Technology
DC DC CONVERTER 2.5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSR02-12S2P5 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE |
| Current - Output (Max) [Max] | 2 A |
| Efficiency | 89 % |
| Features | Standby Output |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 5 W |
| Size / Dimension [x] | 14 mm |
| Size / Dimension [x] | 0.55 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.5 mm |
| Size / Dimension [z] | 10.1 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 4.6 V |
| Voltage - Output 1 | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 14.22 | |
| 15 | $ 12.22 | |||
| 30 | $ 11.75 | |||
| 60 | $ 11.30 | |||
| 105 | $ 10.96 | |||
| 255 | $ 10.42 | |||
| 510 | $ 10.03 | |||
| 1005 | $ 9.65 | |||
Description
General part information
PSR02-12S2P5
Non-Isolated PoL Module DC DC Converter 1 Output 2.5V 2A 4.6V - 36V Input
