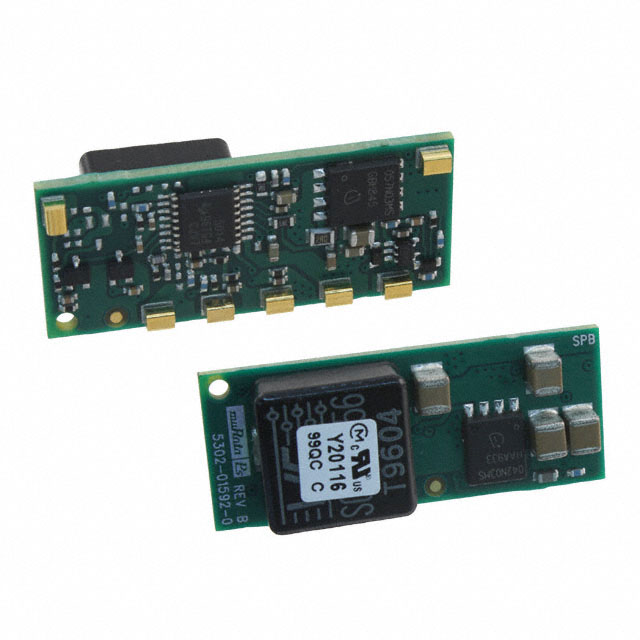

OKY2-T/10-D12P-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, 50 W, 750 MV, 5.5 V, 10 A, ADJUSTABLE, DOSA
Deep-Dive with AI
Search across all available documentation for this part.
OKY2-T/10-D12P-C
ActiveMurata Power Solutions Inc.
NON ISOLATED POL DC/DC CONVERTER, 50 W, 750 MV, 5.5 V, 10 A, ADJUSTABLE, DOSA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | OKY2-T/10-D12P-C | OKY2-T Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Control Features | - | Active High, Enable |
| Current - Output (Max) | - | 10 - 16 A |
| Efficiency | - | 94.5 - 95 % |
| Features | - | OTP, UVLO, SCP, Remote On/Off, OCP |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 7-SMD Module |
| Power (Watts) | - | 33 - 53 W |
| Size / Dimension | - | 1.3 " |
| Size / Dimension | - | 0.53 in |
| Size / Dimension | - | 8.4 mm |
| Size / Dimension | - | 33 mm |
| Size / Dimension | - | 0.33 in |
| Size / Dimension | - | 13.5 mm |
| Type | - | Non-Isolated PoL Module |
| Voltage - Input (Max) | - | 5.5 - 14 V |
| Voltage - Input (Min) | - | 2.4 - 8.3 V |
| Voltage - Output 1 | - | 3.63 - 5.5 V |
| Voltage - Output 1 | - | 0.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
OKY2-T Series
DC DC CONVERTER 0.75-3.63V 53W
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Efficiency | Type | Features | Power (Watts) | Current - Output (Max) [Max] | Voltage - Input (Min) [Min] | Control Features | Mounting Type | Applications | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Package / Case | Number of Outputs |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Murata Power Solutions Inc. OKY2-T/16-W5P-C | 85 °C | -40 °C | 5.5 V | 95 % | Non-Isolated PoL Module | OCP, OTP, Remote On/Off, SCP, UVLO | 53 W | 16 A | 2.4 V | Active High, Enable | Surface Mount | ITE (Commercial) | 3.63 V | 0.75 V | 1.3 " | 0.53 in | 8.4 mm | 33 mm | 0.33 in | 13.5 mm | 7-SMD Module | 1 |
Murata Power Solutions Inc. OKY2-T/10-D12P-C | 85 °C | -40 °C | 14 V | 94.5 % | Non-Isolated PoL Module | OCP, OTP, Remote On/Off, SCP, UVLO | 50 W | 10 A | 8.3 V | Active High, Enable | Surface Mount | ITE (Commercial) | 5.5 V | 0.75 V | 1.3 " | 0.53 in | 8.4 mm | 33 mm | 0.33 in | 13.5 mm | 7-SMD Module | 1 |
Murata Power Solutions Inc. OKY2-T/10-D12P-C | ||||||||||||||||||||||
Murata Power Solutions Inc. OKY2-T/10-W5P-C | 85 °C | -40 °C | 5.5 V | 95 % | Non-Isolated PoL Module | OCP, OTP, Remote On/Off, SCP, UVLO | 33 W | 10 A | 2.4 V | Active High, Enable | Surface Mount | ITE (Commercial) | 3.63 V | 0.75 V | 1.3 " | 0.53 in | 8.4 mm | 33 mm | 0.33 in | 13.5 mm | 7-SMD Module | 1 |
Description
General part information
OKY2-T Series
Non-Isolated PoL Module DC DC Converter 1 Output 0.75 ~ 5.5V 10A 8.3V - 14V Input
