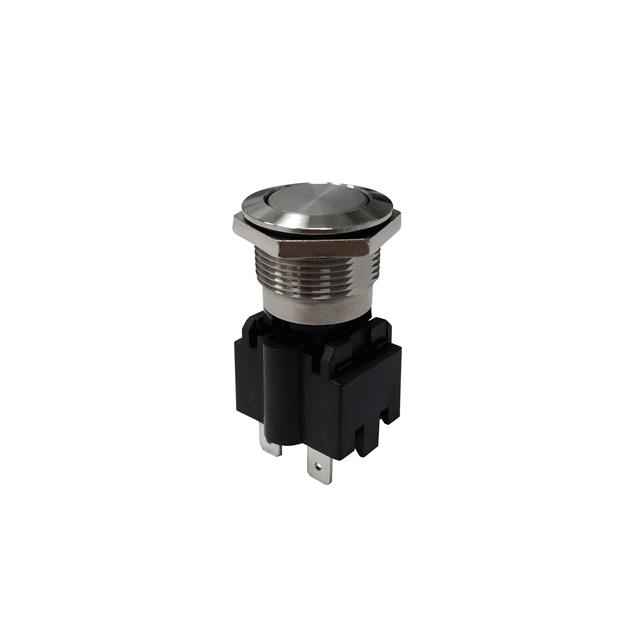

SW-PB7-05B22FR

Active

Adam Tech

HIGH CURRENT ANTI-VANDAL PUSHBUT

Search across all available documentation for this part.

Active

Adam Tech

HIGH CURRENT ANTI-VANDAL PUSHBUT

Technical Specifications

Parameters and characteristics for this part

Specification	SW-PB7-05B22FR

Actuator Marking	No Marking
Actuator Type	Round, Button
Circuit	SPST-NO
Color - Actuator/Cap	Silver
Current Rating (Amps)	16 A
Electrical Life	10000 Cycles
Ingress Protection	IP65 - Dust Tight, Water Resistant
Mounting Type	Panel Mount, Front
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Switch Function	Off-Mom
Termination Style	Solder, Quick Connect
Termination Style	4.7 mm, 0.187 in
Type	Anti-Vandal
Voltage Rating - AC	125 V

Part	Actuator Marking	Ingress Protection	Actuator Type	Switch Function	Color - Actuator/Cap	Electrical Life	Illumination Voltage (Nominal)	Type	Operating Temperature [Max]	Operating Temperature [Min]	Circuit	Illumination Type, Color	Panel Cutout Dimensions [diameter]	Termination Style	Mounting Type	Voltage Rating - DC	Current Rating (Amps)	Termination Style	Voltage Rating - AC
Adam Tech SW-PB7-03LB22CFPR12V	No Marking	IP67 - Dust Tight Waterproof	Button Round	On-On	Silver	50000 Cycles	12 VAC/DC	Anti-Vandal Illuminated	55 °C	-25 °C	SPDT	LED Red	19 mm	Solder Lug	Panel Mount Front
Adam Tech SW-PB7-01LB42BFRB12VM	No Marking	IP67 - Dust Tight Waterproof	Button Round	Off-Mom	Silver	200000 Cycles	12 VAC/DC	Anti-Vandal Illuminated	55 °C	-25 °C	SPST-NO	Blue LED	12 mm	Solder Lug	Panel Mount Front	36 VDC	2 A
Adam Tech SW-PB7-03LB22CFRG12V	No Marking	IP67 - Dust Tight Waterproof	Button Round	On-On	Silver	50000 Cycles	12 VAC/DC	Anti-Vandal Illuminated	55 °C	-25 °C	SPDT	Green LED	19 mm	Solder Lug	Panel Mount Front
Adam Tech SW-PB7-05B22FR	No Marking	IP65 - Dust Tight Water Resistant	Button Round	Off-Mom	Silver	10000 Cycles		Anti-Vandal	85 °C	-30 ░C	SPST-NO			Quick Connect Solder	Panel Mount Front		16 A	0.187 in 4.7 mm	125 V
