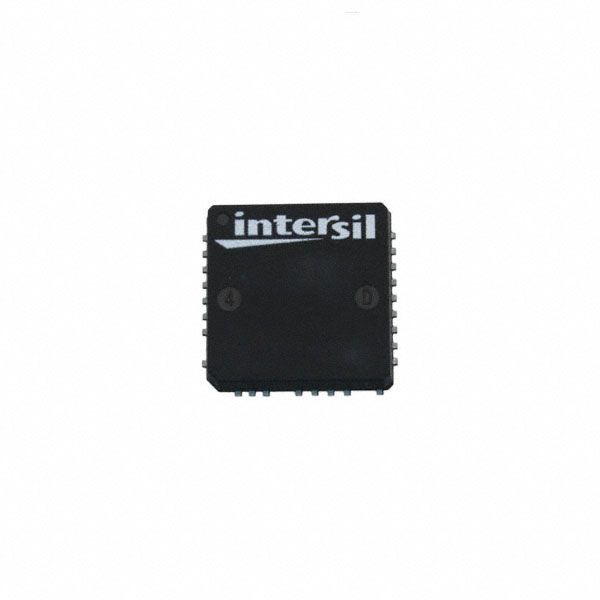

ZL9101MIRZ
ActiveDIGITAL DC/DC PMBUS 12A MODULE
Deep-Dive with AI
Search across all available documentation for this part.
ZL9101MIRZ
ActiveDIGITAL DC/DC PMBUS 12A MODULE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | ZL9101MIRZ | ZL9101M Series |
|---|---|---|
| Applications | - | ITE (Commercial) |
| Current - Output (Max) | - | 12 A |
| Efficiency | - | 95 % |
| Features | - | OCP, UVLO, OTP, OVP |
| Mounting Type | - | Surface Mount |
| null | - | |
| Number of Outputs | - | 1 |
| Operating Temperature | - | 85 °C |
| Operating Temperature | - | -40 °C |
| Package / Case | - | 21-PowerBQFN Module |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 15 mm |
| Size / Dimension | - | 0.14 " |
| Size / Dimension | - | 3.5 mm |
| Size / Dimension | - | 0.59 in |
| Size / Dimension | - | 0.59 in |
| Supplier Device Package | - | 21-QFN (15x15) |
| Type | - | Non-Isolated PoL Module, Digital |
| Voltage - Input (Max) | - | 13.2 V |
| Voltage - Input (Min) | - | 4.5 V |
| Voltage - Output 1 | - | 3.6 V |
| Voltage - Output 1 | - | 0.54 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
ZL9101M Series
Digital DC/DC PMBus 12A Module
| Part | Current - Output (Max) [Max] | Voltage - Input (Max) [Max] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Number of Outputs | Mounting Type | Applications | Type | Operating Temperature [Max] | Operating Temperature [Min] | Package / Case | Efficiency | Features | Voltage - Output 1 [Max] | Voltage - Output 1 [Min] | Voltage - Input (Min) [Min] | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Renesas Electronics Corporation ZL9101MAIRZ-T | 12 A | 13.2 V | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 1 | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module, Digital | 85 °C | -40 °C | 21-PowerBQFN Module | 95 % | OCP, OTP, OVP, UVLO | 3.6 V | 0.54 V | 4.5 V | 21-QFN (15x15) |
Renesas Electronics Corporation ZL9101MAIRZ | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MBIRZ | 12 A | 13.2 V | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 1 | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module, Digital | 85 °C | -40 °C | 21-PowerBQFN Module | 95 % | OCP, OTP, OVP, UVLO | 3.6 V | 0.54 V | 4.5 V | 21-QFN (15x15) |
Renesas Electronics Corporation ZL9101MBIRZ-T | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MAIRZ | 12 A | 13.2 V | 15 mm | 15 mm | 0.14 " | 3.5 mm | 0.59 in | 0.59 in | 1 | Surface Mount | ITE (Commercial) | Non-Isolated PoL Module, Digital | 85 °C | -40 °C | 21-PowerBQFN Module | 95 % | OCP, OTP, OVP, UVLO | 3.6 V | 0.54 V | 4.5 V | 21-QFN (15x15) |
Renesas Electronics Corporation ZL9101MIRZ | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MBIRZ | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MAIRZ-T | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MBIRZ | |||||||||||||||||||||
Renesas Electronics Corporation ZL9101MIRZ-T |
Description
General part information
ZL9101M Series
The ZL9101M is a 12A, variable output, step-down PMBus-compliant digital power supply. Included in the module is a high-performance digital PWM controller, power MOSFETs, an inductor, and all the passive components required for a highly integrated DC/DC power solution. This power module has built-in auto-compensation algorithms, which eliminate the need for manual compensation design work. The ZL9101M operates over a wide input voltage range and supports an output voltage range of 0. 6V to 3. 6V, which can be set by external resistors or through PMBus. This high-efficiency power module is capable of delivering 12A. Only bulk input and output capacitors are needed to finish the design. The output voltage can be precisely regulated to as low as 0. 6V with ±1% output voltage regulation over line, load, and temperature variations. The ZL9101M features auto compensation, internal soft-start, auto-recovery overcurrent protection, an enable option, and prebiased output start-up capabilities. The ZL9101M is packaged in a thermally enhanced, compact (15mmx15mm) and low profile (3. 5mm) overmolded QFN package module suitable for automated assembly by standard surface mount equipment. The ZL9101M is RoHS compliant. For PMBus operation, it is recommended to tie the Enable pin (EN) to SGND.
