DSF205Q3R0

Active

Cornell Dubilier Knowles

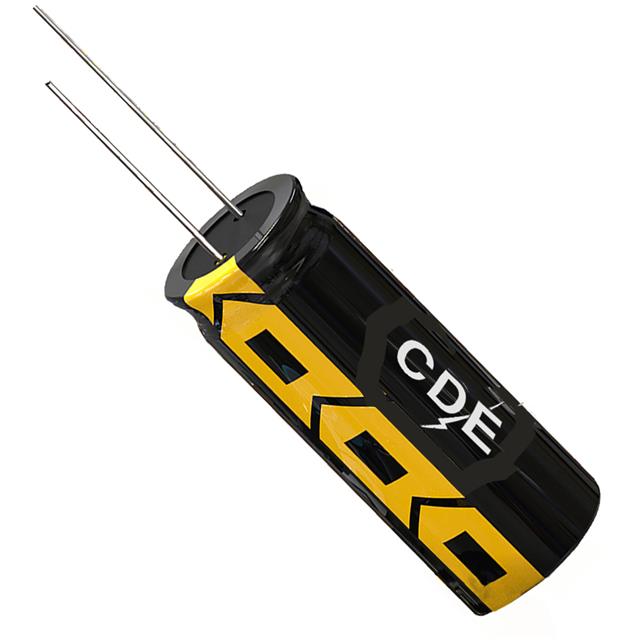

CAPACITOR 2F -10%, +30% 3V TH

Search across all available documentation for this part.

Active

Cornell Dubilier Knowles

CAPACITOR 2F -10%, +30% 3V TH

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	DSF205Q3R0	DSF Series

Capacitance	2 F	2 - 35 F
ESR (Equivalent Series Resistance)	160 mOhm	25 - 160 mOhm
Height - Seated (Max)	15.5 mm	15.5 mm
Height - Seated (Max)	-	1.063 in
Height - Seated (Max)	-	27 mm
Height - Seated (Max)	-	21.5 mm
Height - Seated (Max) [Max]	0.61 "	0.61 - 0.846 "
Lead Spacing	3.5 mm	3.5 - 7.5 mm
Lead Spacing	0.138 in	0.138 - 0.295 in
Lifetime @ Temp.	1000 Hrs	1000 Hrs
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	Radial, Can	Radial, Can
Size / Dimension [diameter]	0.315 "	0.315 - 0.63 in
Size / Dimension [diameter]	8 mm	8 - 16 mm
Termination	PC Pins	PC Pins
Tolerance	-	20 %
Tolerance [Max]	30 %	30 %
Tolerance [Min]	-10 %	-10 %
Voltage - Rated	3 VDC	3 VDC

CAPACITOR 10F -10%, +30% 3V TH

Part	Package / Case	Capacitance	Voltage - Rated	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Size / Dimension [diameter]	ESR (Equivalent Series Resistance)	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Lead Spacing	Lead Spacing	Tolerance [Min]	Tolerance [Max]	Lifetime @ Temp.	Mounting Type	Height - Seated (Max)	Height - Seated (Max) [Max]	Tolerance	Height - Seated (Max) [Max]
Cornell Dubilier Knowles DSF106Q3R0C	Radial, Can	10 F	3 VDC	1.063 in	27 mm	10 mm	0.394 in	90 mOhm	PC Pins	85 °C	-40 °C	5 mm	0.197 in	-10 %	30 %	1000 Hrs	Through Hole
Cornell Dubilier Knowles DSF356Q3R0	Radial, Can	35 F	3 VDC			16 mm	0.63 in	25 mOhm	PC Pins	85 °C	-40 °C	7.5 mm	0.295 in	-10 %	30 %	1000 Hrs	Through Hole
Cornell Dubilier Knowles DSF156Q3R0	Radial, Can	15 F	3 VDC			12.5 mm	0.492 in	55 mOhm	PC Pins	85 °C	-40 °C	5 mm	0.197 in	-10 %	30 %	1000 Hrs	Through Hole
Cornell Dubilier Knowles DSF205Q3R0	Radial, Can	2 F	3 VDC			8 mm	0.315 "	160 mOhm	PC Pins	85 °C	-40 °C	3.5 mm	0.138 in	-10 %	30 %	1000 Hrs	Through Hole	15.5 mm	0.61 "
Cornell Dubilier Knowles DSF405M3R0	Radial, Can	4 F	3 VDC			8 mm	0.315 "	80 mOhm	PC Pins	85 °C	-40 °C	3.5 mm	0.138 in			1000 Hrs	Through Hole		0.846 in	20 %	21.5 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 F (EDLC) Supercapacitor 3 V Radial, Can 160mOhm @ 1kHz 1000 Hrs @ 85°C
