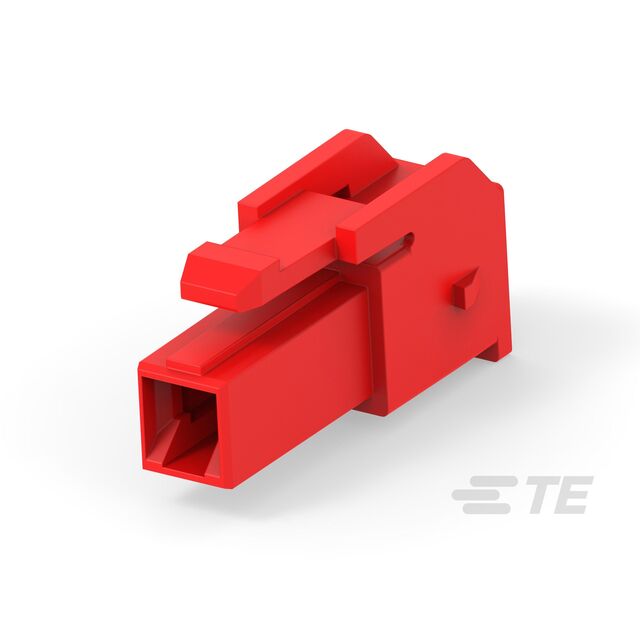

Specification	1-2408780-1

Color	Red
Connector Type	Plug
Contact Termination	Crimp
Contact Type	Male or Female, Male, Female
Fastening Type	Latch Lock
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	1
Number of Rows	1

2408780 Series

Part	Note	Color	Pitch	Number of Positions	Contact Type	Fastening Type	Contact Termination	Insulation Material	Mounting Type	Number of Rows	Connector Type
TE Connectivity AMP Connectors 2408780-3	Contacts Not Included	White	0.244 in	3	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 7-2408780-4	Contacts Not Included	Blue	0.244 in	4	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 6-2408780-2	Contacts Not Included	Red	0.244 in	2	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 6-2408780-4	Contacts Not Included	Red	0.244 in	4	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug

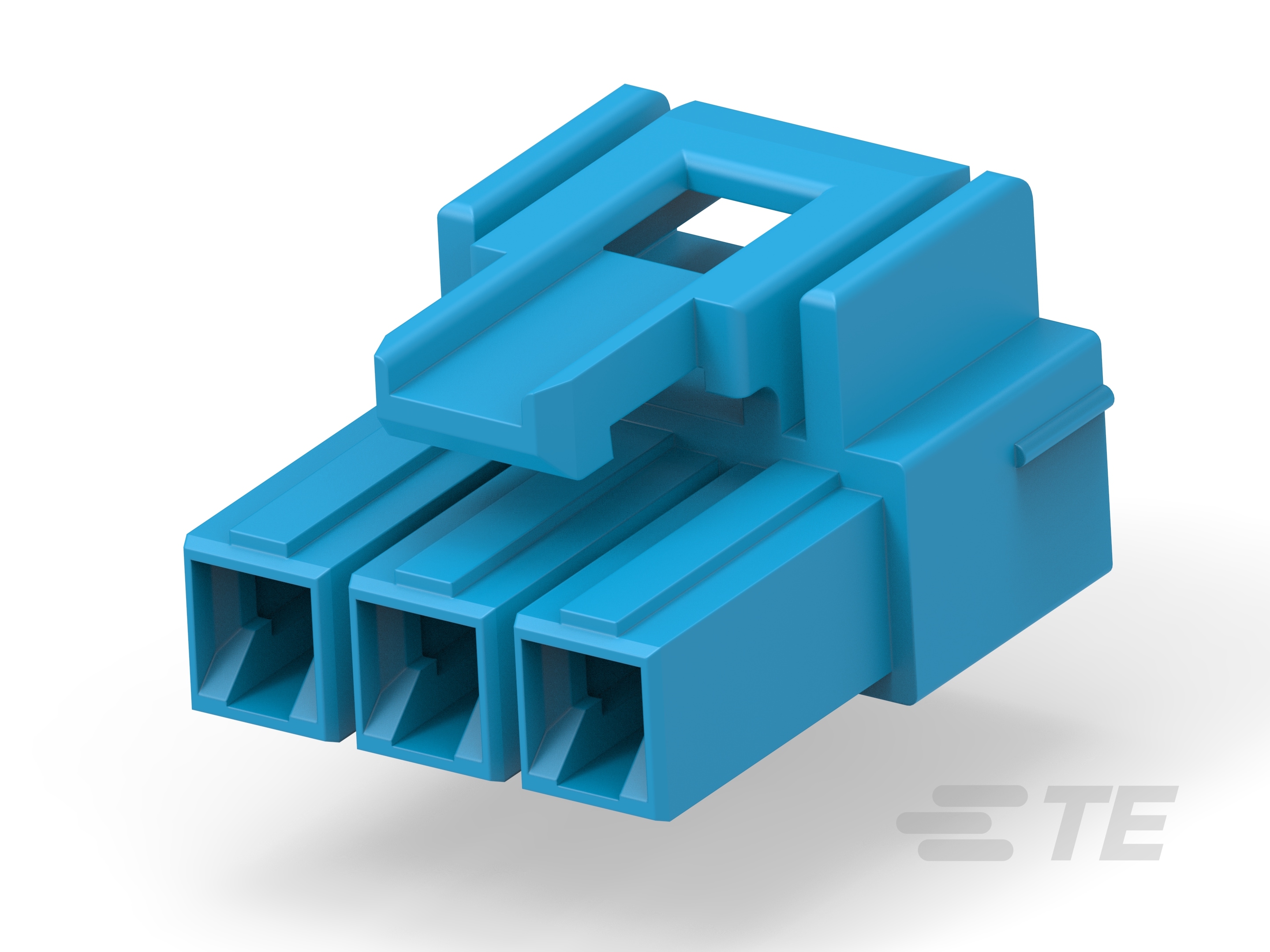

TE Connectivity AMP Connectors 7-2408780-3	Contacts Not Included	Blue	0.244 in	3	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 5-2408780-2	Contacts Not Included	Blue	0.244 in	2	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 5-2408780-3	Contacts Not Included	Blue	0.244 in	3	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug

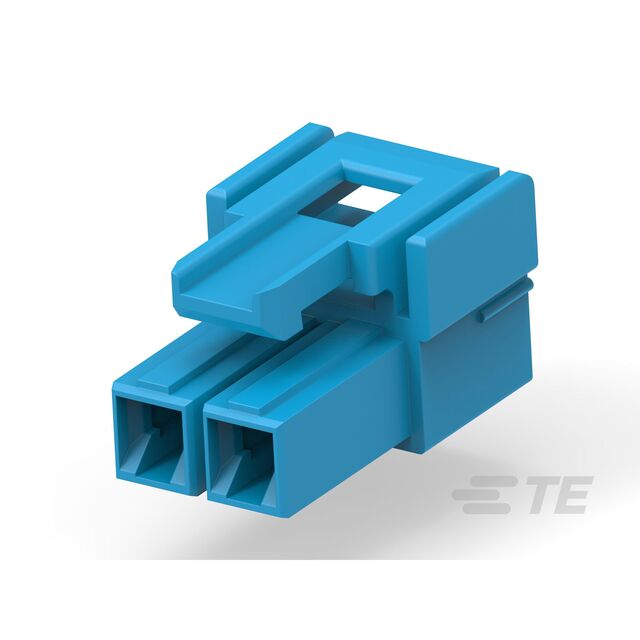

TE Connectivity AMP Connectors 7-2408780-2	Contacts Not Included	Blue	0.244 in	2	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug

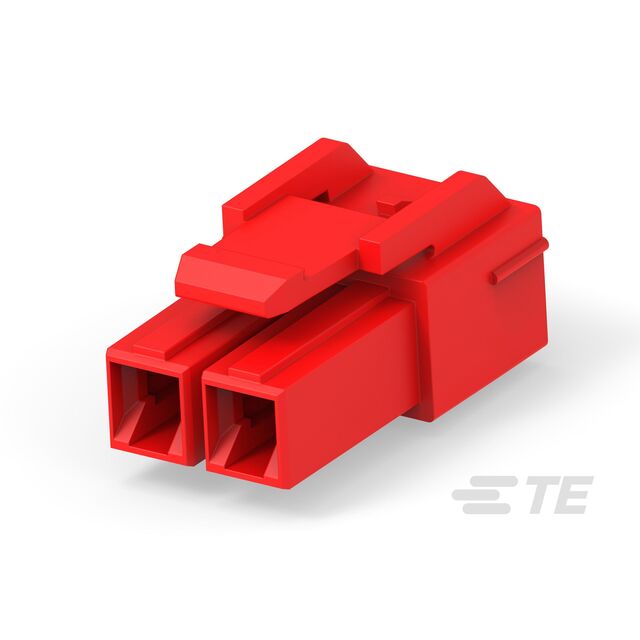

TE Connectivity AMP Connectors 1-2408780-2	Contacts Not Included	Red	0.244 in	2	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
TE Connectivity AMP Connectors 5-2408780-1	Contacts Not Included	Blue		1	Female Male Male or Female	Latch Lock	Crimp	Thermoplastic	Free Hanging (In-Line)	1	Plug
