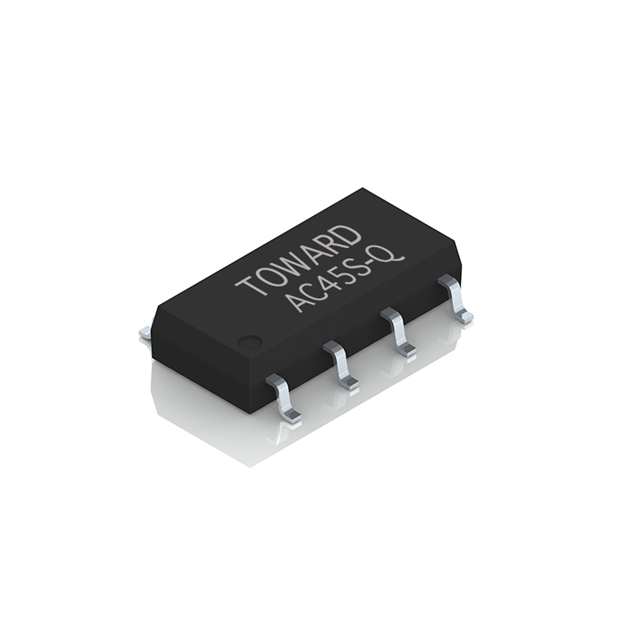

AC45S-Q

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY DPST-NO 160MA 0-60V

Search across all available documentation for this part.

Active

Bright Toward Industrial Co., Ltd.

SSR RELAY DPST-NO 160MA 0-60V

Technical Specifications

Parameters and characteristics commom to parts in this series

SSR RELAY DPST-NO 160MA 0-60V

Part	Qualification	Package / Case	Package / Case [custom]	Package / Case [x]	Circuit	On-State Resistance (Max) [Max]	Load Current	Mounting Type	Output Type	Grade	Termination Style	Voltage - Load [Min]	Voltage - Load [Max]	Supplier Device Package	Voltage - Input
Bright Toward Industrial Co., Ltd. AC45S-Q	AEC-Q101	8-SOP	4.4 mm	0.173 in	DPST-NO (2 Form A)	5 Ohms	160 mA	Surface Mount	AC, DC	Automotive	Gull Wing	0 V	60 V	8-SOP	1.17 VDC
Bright Toward Industrial Co., Ltd. AC45S-Q-R1	AEC-Q101				SPST-NO (1 Form A) x 2	5 Ohms	100 mA	Surface Mount	AC, DC	Automotive	Gull Wing	0 V	60 V	8-SOP	1.17 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Solid State DPST-NO (2 Form A) 8-SOP (0.173", 4.40mm Width)
