W3010
ActivePulse Electronics

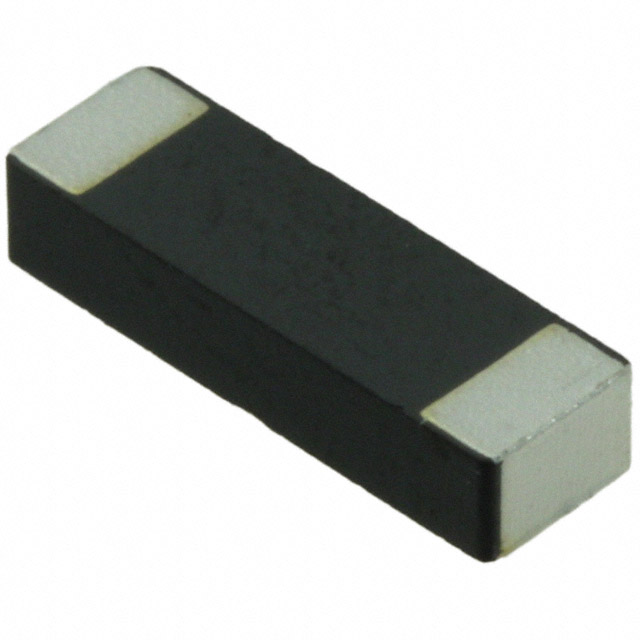

RF ANT 1.575GHZ CHIP SOLDER SMD
W3010
ActivePulse Electronics
RF ANT 1.575GHZ CHIP SOLDER SMD
Description
General part information
W3010
RF ANTENNA GPS Chip Solder Surface Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | W3010 |
|---|---|
| Antenna Type | Chip |
| Applications | GPS |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 2 GHz |
| Frequency Group Minimum (UHF) | 1 GHz |
| Gain | 2.8 dBi |
| Height (Max) | 0.079 in |
| Mounting Type | Surface Mount |
| Number of Bands | 1 |
| Return Loss | -18 dB |
| RF Family/Standard | Navigation |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
