20STRBROTXL500
ActiveRemington Industries
HOOK-UP STRND 20AWG BROWN 500'
20STRBROTXL500
ActiveRemington Industries
HOOK-UP STRND 20AWG BROWN 500'
Description
General part information
20STRBROTXL500

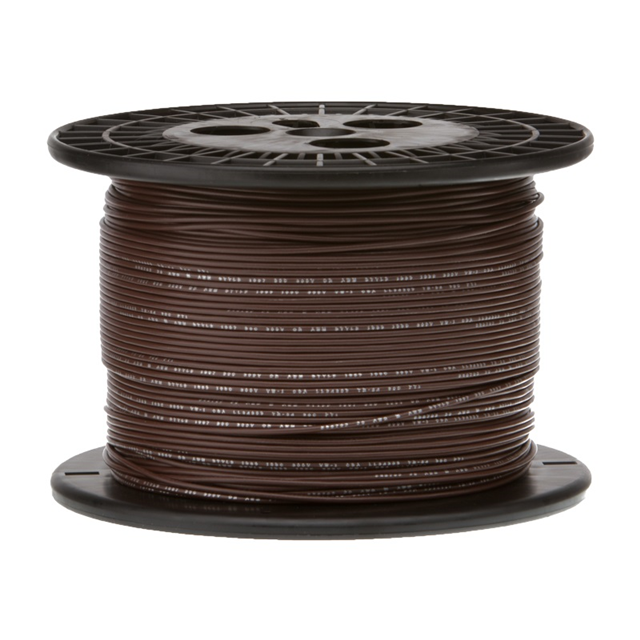

20 AWG Hook-Up, Automotive Wire 7/28 Brown 60V 500.0' (152.4m)
Technical Specifications
Parameters and characteristics for this part
| Specification | 20STRBROTXL500 |
|---|---|
| Cable Type | Hook-Up, Automotive |
| Conductor Material | Copper, Bare |
| Conductor Strand Count | 7 Strands |
| Conductor Strand Gauge | 28 |
| Features | Abrasion Resistant, Solvent Resistant, Oil Resistant, Chemical Resistant |
| Jacket (Insulation) Diameter | 0.07 in |
| Jacket (Insulation) Material | Polyethylene (XLPE) |
| Jacket Color | Brown |
| Length | 500 ft |
| Operating Temperature | 125 °C |
| Voltage | 60 V |
| Wire Gauge | 20 AWG |
