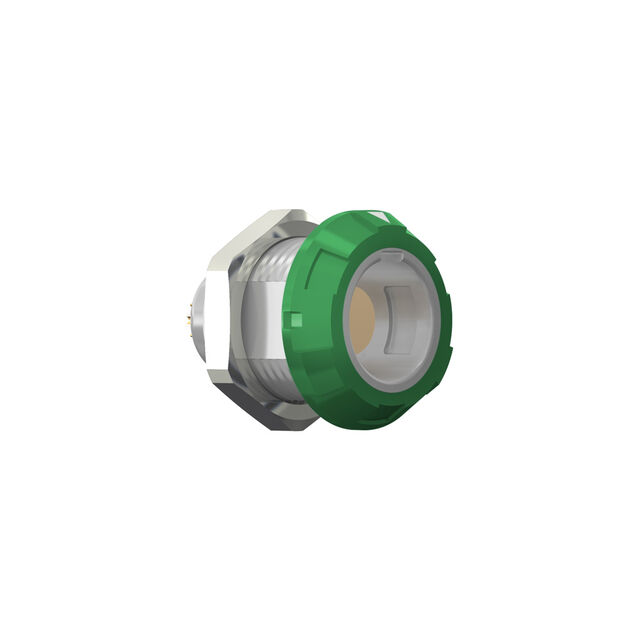

Specification	G11MA7-P05QJ00-0050

Applications	Testing Equipment & Measurement, Medical, Military, Industrial
Color	Gray
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating	7.5 A
Fastening Type	Push-Pull, Detent Lock
Ingress Protection Description	Dust Protected
Ingress Protection IP Rating	IP50
Insert Material	Polyetheretherketone, PEEK
Mounting Feature	Rear Side Nut, Bulkhead
Mounting Type	Panel Mount
Number of Positions	5
Operating Temperature (Max)	120 °C
Operating Temperature (Min)	-50 °C
Orientation	A
Primary Material	Plastic
Shell Material	Polysulfone (PSU)
Shell Size - Insert	1
Shell Size - Insert	1
Shielding	Unshielded
Termination	Solder Cup

MEDI-SNAP Series

...

Part	Contact Material	Shell Material	Fastening Type	Current Rating	Termination	Applications	Mounting Feature	Number of Positions	Operating Temperature (Max)	Operating Temperature (Min)	Primary Material	Shielding	Orientation	Color	Contact Finish - Mating	Mounting Type	Insert Material	Connector Type	Shell Size - Insert	Shell Size - Insert	Ingress Protection Description	Ingress Protection IP Rating	Features	Backshell Material, Plating	Orientation Angle	Cable Opening (Max)	Cable Opening (Min)
ODU G11MA8-P04LJG0-0080	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	4	120 °C	-50 °C	Plastic	Unshielded	A	Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU S11M08-P10MCC0-6570	Copper Alloy	Polysulfone (PSU)	Push-Pull	4 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement		10	120 °C	-50 °C	Plastic	Unshielded		Black	Gold	Free Hanging (In-Line)	PEEK Polyetheretherketone	Male Pins Plug	1	1	Dust Protected	IP50	Backshell	Polysulfone (PSU)	0 °	0.256 in	0.209 in
ODU G11MC8-P07LFD0-0080	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded	C	Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU G11MC7-P07QF00-0040	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded	C	Gray	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU G51MC7-P07QF00-A080	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded	C	Gray	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU G11MC8-P04LJG0-0080	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	4	120 °C	-50 °C	Plastic	Unshielded	C	Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU G51MA8-P07LFD0-0060	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded	A	Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
ODU G51M07-P07QF00-0080	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded		Gray	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50			0 °
ODU G51M08-P07QF00-A030	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	6 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	7	120 °C	-50 °C	Plastic	Unshielded		Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50			0 °
ODU G51MA8-P04QJ00-0070	Copper Alloy	Polysulfone (PSU)	Detent Lock Push-Pull	7.5 A	Solder Cup	Industrial Medical Military Testing Equipment & Measurement	Bulkhead Rear Side Nut	4	120 °C	-50 °C	Plastic	Unshielded	A	Black	Gold	Panel Mount	PEEK Polyetheretherketone	Female Sockets Receptacle	1	1	Dust Protected	IP50
