BMA222E-SHUTL

Obsolete

Bosch Sensortec

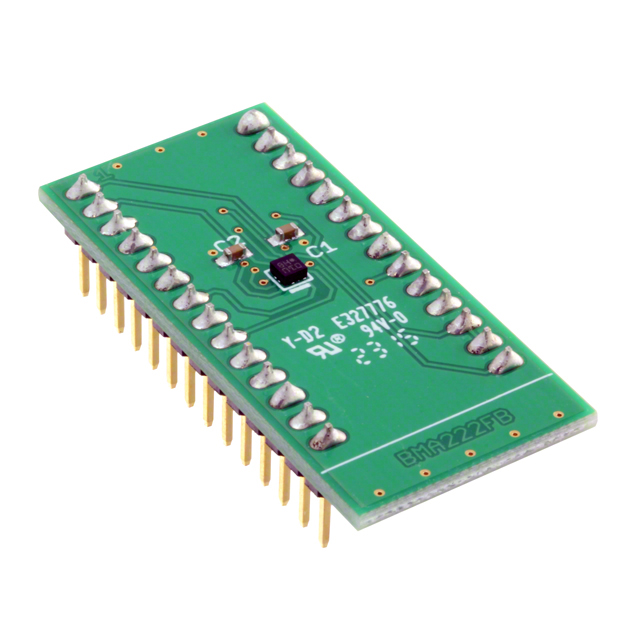

SHUTTLE BOARD BMA222E

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD BMA222E

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BMA222E Accelerometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	BMA222E-SHUTL	BMA222 Series

Acceleration Range	-	4 - 16 g
Acceleration Range	-	-2 g
Acceleration Range	-	2 g
Axis	-	Z
Axis	-	Y
Axis	-	X
Bandwidth	-	8 Hz
Bandwidth	-	1 kHz
Contents	Board(s)	Board(s)
Features	-	Sleep Mode, Selectable Low Pass Filter, Adjustable Bandwidth, Selectable Scale, Temperature Sensor
Function	Accelerometer	Accelerometer
Mounting Type	-	Surface Mount
Operating Temperature	-	85 °C
Operating Temperature	-	-40 °C
Output Type	-	I2C, SPI
Package / Case	-	12-VFLGA
Sensitivity (LSB/g)	-	8 - 64 LSB/g
Supplier Device Package	-	12-LGA (2x2)
Type	Sensor	Digital, Sensor
Utilized IC / Part	BMA222E	BMA222E
Voltage - Supply	-	3.6 V
Voltage - Supply	-	1.62 V

ACCEL 2-16G I2C/SPI 12LGA

Part	Output Type	Acceleration Range	Acceleration Range [Min]	Acceleration Range [Max]	Sensitivity (LSB/g)	Supplier Device Package	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Axis [z]	Axis [y]	Axis [x]	Package / Case	Features	Operating Temperature [Max]	Operating Temperature [Min]	Type	Bandwidth [Min]	Bandwidth [Max]	Utilized IC / Part	Function	Contents
Bosch Sensortec BMA222	I2C, SPI	4 g, 8 g, 16 g	-2 g	2 g	8 LSB/g, 64 LSB/g	12-LGA (2x2)	Surface Mount	3.6 V	1.62 V	Z	Y	X	12-VFLGA	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Sleep Mode, Temperature Sensor	85 °C	-40 °C	Digital	8 Hz	1 kHz
Bosch Sensortec BMA222E	I2C, SPI	4 g, 8 g, 16 g	-2 g	2 g	8 LSB/g, 64 LSB/g	12-LGA (2x2)	Surface Mount	3.6 V	1.62 V	Z	Y	X	12-VFLGA	Adjustable Bandwidth, Selectable Low Pass Filter, Selectable Scale, Temperature Sensor	85 °C	-40 °C	Digital	8 Hz	1 kHz
Bosch Sensortec BMA222E-SHUTL																	Sensor			BMA222E	Accelerometer	Board(s)
