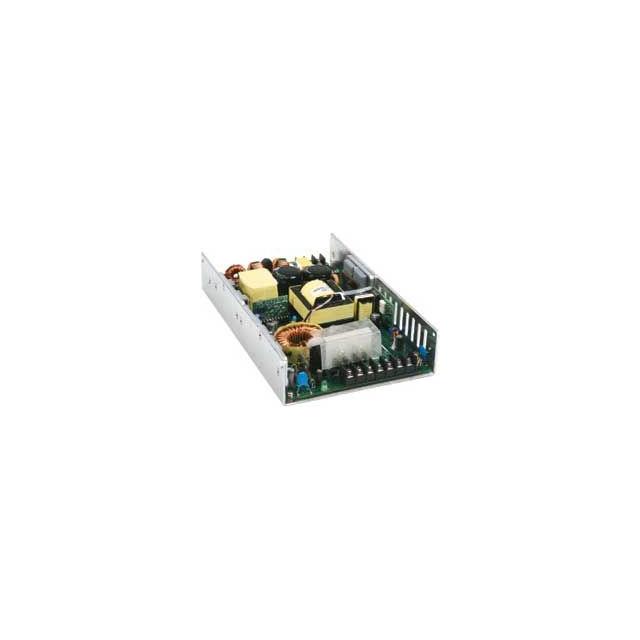

PMK450S-24U
ActiveAstrodyne TDI
AC/DC CONVERTER 24V 450W
PMK450S-24U
ActiveAstrodyne TDI
AC/DC CONVERTER 24V 450W
Description
General part information
PMK450S-24U
Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input
Technical Specifications
Parameters and characteristics for this part
| Specification | PMK450S-24U |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cURus |
| Current - Output 1 | 18.75 A |
| Efficiency | 86 % |
| Features | Universal Input |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | 0 °C |
| Power (Watts) | 450 W |
| Standard Number | 60950-1 |
| Type | Open Frame |
| Voltage - Input (AC) Maximum | 264 V |
| Voltage - Input (AC) Minimum | 90 V |
| Voltage - Isolation | 4242 V |
| Voltage - Output 1 | 24 V |
