FMCA2695-12
ActiveFairview Microwave
COAX CBL BNC TO N-TYPE 12"
FMCA2695-12
ActiveFairview Microwave
COAX CBL BNC TO N-TYPE 12"
Description
General part information
FMCA2695-12

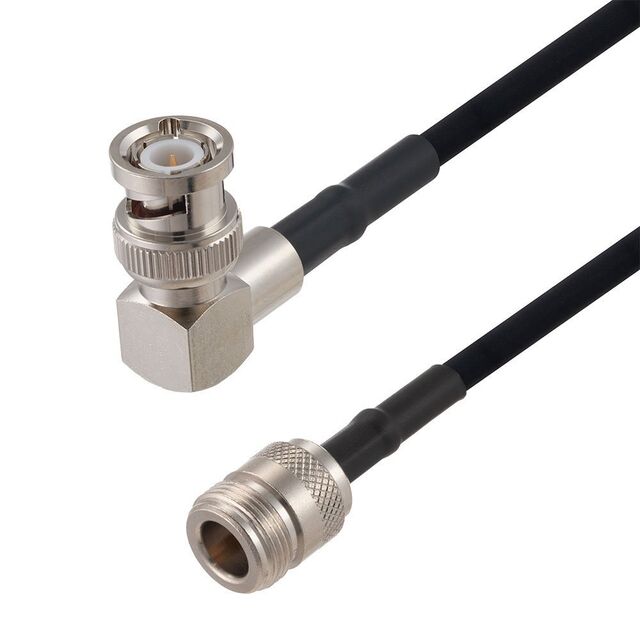

Cable Assembly Coaxial BNC to N-Type RG-223 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | FMCA2695-12 |
|---|---|
| 1st Connector | Right Angle, BNC Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | N-Type Jack |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-223, 223, RG |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 4 GHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, BNC |
