OPB700TXV
TT Electronics/Optek Technology
SNSR OPTO TRANS 5.08MM REFL C-MT
Deep-Dive with AI
Search across all available documentation for this part.
OPB700TXV
TT Electronics/Optek Technology
SNSR OPTO TRANS 5.08MM REFL C-MT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OPB700TXV |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -65 ░C |
| Package / Case | Module, Pre-Wired |
| Response Time | 12 µs |
| Response Time | 12 µs |
| Sensing Distance | 0.2 in |
| Sensing Distance | 5.08 mm |
| Sensing Method | Reflective |
| Voltage - Collector Emitter Breakdown (Max) [Max] | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 25 | $ 431.13 | |
Description
General part information
OPB700TXV

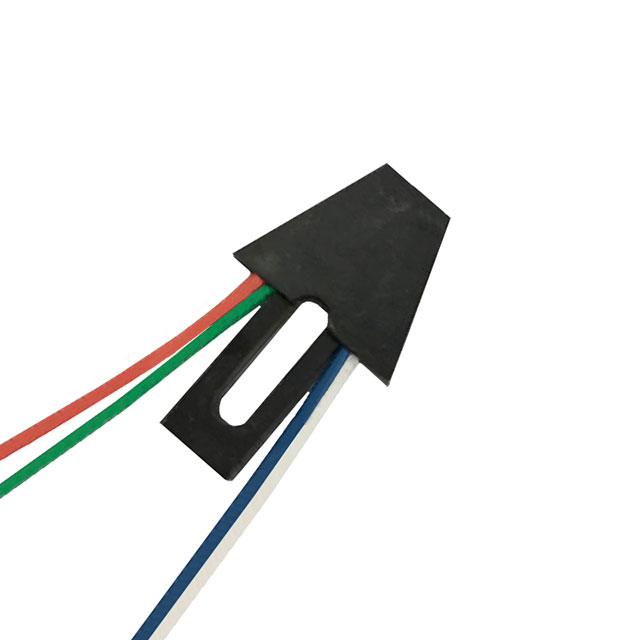

Reflective Optical Sensor 0.200" (5.08mm) Module, Pre-Wired
Documents
Technical documentation and resources
No documents available
