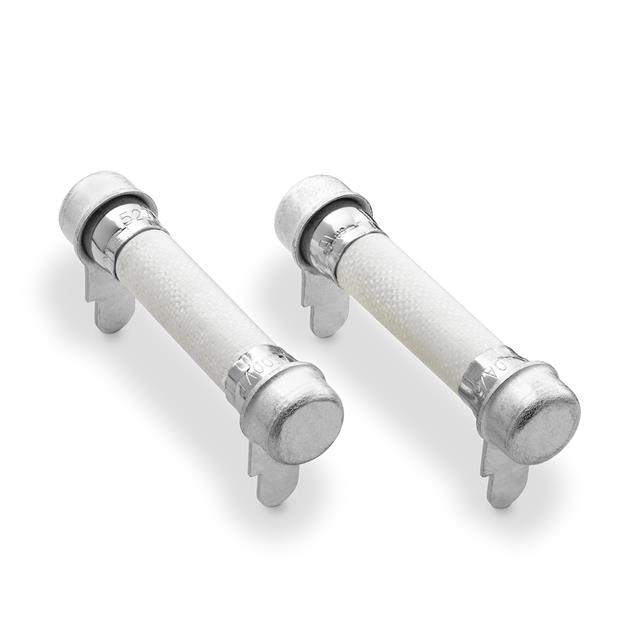

0527040.UXTHP

Active

LITTELFUSE

FUSE 500VAC 6X32MM TERMINAL PB-FREE 40A/ TRAY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0527040.UXTHP

Active

LITTELFUSE

FUSE 500VAC 6X32MM TERMINAL PB-FREE 40A/ TRAY

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0527040.UXTHP

Current Rating (Amps)	40 A
DC Cold Resistance	0.000002 Ohms
Fuse Type	Cartridge, Ceramic
Melting I˛t	1090
Melting I²t	1090
Mounting Type	Through Hole
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial Bend Cylinder
Response Time	Fast Blow
Size / Dimension [diameter]	7.45 mm
Size / Dimension [diameter]	0.293 "
Size / Dimension [x]	34.35 mm
Size / Dimension [x]	1.352 "
Voltage Rating - AC	500 V
Voltage Rating - DC	500 V

0527040.P Series

FUSE 500VAC 6x32mm TERMINAL PB-FREE 40A

Part	Melting I˛t	Response Time	Voltage Rating - DC	Current Rating (Amps)	Mounting Type	Voltage Rating - AC	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Melting I²t	DC Cold Resistance	Fuse Type	Package / Case
LITTELFUSE 0527040.UXTHP	1090	Fast Blow	500 V	40 A	Through Hole	500 V	-55 °C	125 °C	34.35 mm	7.45 mm	0.293 "	1.352 "	1090	0.000002 Ohms	Cartridge, Ceramic	Radial Bend Cylinder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 14.52
		5	$ 12.05
		10	$ 11.12
		40	$ 9.46
		80	$ 8.72
		230	$ 7.70
		500	$ 7.35
Newark	Each	500	$ 7.71

Description

General part information

0527040.P Series

The 527 series fuses are specifically designed and tested to meet the circuit protection needs of compact automotive electronics applications. These robust fuses include a 500Vac rating and provide an excellent interrupting rating. AEC-Q200 qualified, the 527 fuses are ideal for the On-Board Chargers (OBCs) in the latest electric vehicle designs. With available through-hole, it’s flexible for PC board.
