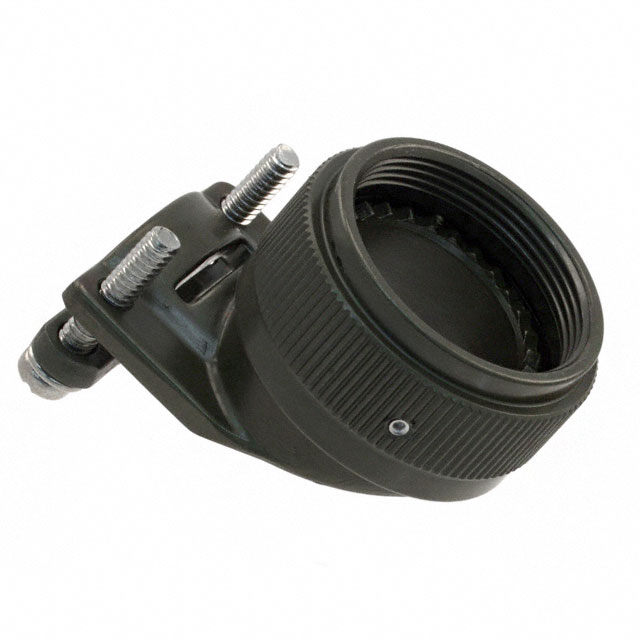

M85049/39-17W

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ17 E OLIVE

Search across all available documentation for this part.

Active

Amphenol Interconnect India

CONN CABLE CLAMP SZ17 E OLIVE

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	M85049/39-17W	M85049/39 Series

Cable Exit	90 °	90 °
Cable Opening	-	5.94 mm
Cable Opening	-	0.26 - 0.457 in
Cable Opening	-	6.6 - 11.61 mm
Cable Opening [Max] [custom]	15.6 mm	15.6 mm
Cable Opening [Max] [custom]	0.614 in	0.234 - 0.614 in
Cable Opening [Min] [custom]	0.283 in	0.153 - 0.283 in
Cable Opening [Min] [custom]	7.19 mm	3.89 - 7.19 mm
Color	Olive Drab	Olive Drab
Diameter - Outside	-	35.71 mm
Diameter - Outside [diameter]	1.25 in	0.85 - 1.25 in
Diameter - Outside [diameter]	31.75 mm	1.406 - 31.75 mm
Features	Strain Relief	Strain Relief, Self Locking
For Use With/Related Products	MIL-DTL-38999 Series III, IV	MIL-DTL-38999 Series III, IV
Material	Aluminum Alloy	Aluminum Alloy
Plating	Cadmium	Cadmium
Shell Size - Insert	17, E	B, 17, E, D
Shell Size - Insert	-	11 - 15
Shielding	Unshielded	Unshielded
Type	Cable Clamp	Cable Clamp

CONN CABLE CLAMP SZ11 B OLIVE

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Shielding	Shell Size - Insert	Shell Size - Insert	Color	Material	Plating	Cable Exit	For Use With/Related Products	Features	Type	Cable Opening [Max] [custom]	Diameter - Outside [diameter]	Cable Opening [custom]	Cable Opening [custom]
Amphenol Interconnect India M85049/39-11W	21.59 mm	0.85 in	0.153 in	3.89 mm	5.94 mm	0.234 in	Unshielded	B	11	Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp
Amphenol Interconnect India M85049/39S17W	1.406 in		0.283 in	7.19 mm		0.614 in	Unshielded	17, E		Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Self Locking, Strain Relief	Cable Clamp	15.6 mm	35.71 mm
Amphenol Interconnect India M85049/39-15W	27.94 mm	1.1 "					Unshielded	D	15	Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp			0.26 in, 0.457 in	6.6 mm, 11.61 mm
Amphenol Interconnect India M85049/39-17W	31.75 mm	1.25 in	0.283 in	7.19 mm		0.614 in	Unshielded	17, E		Olive Drab	Aluminum Alloy	Cadmium	90 °	MIL-DTL-38999 Series III, IV	Strain Relief	Cable Clamp	15.6 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 17, E
