A6R-162RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes Datasheet

A6R-162RS

Active

Omron Electronics Inc-EMC Div

SWITCH ROTARY DIP HEX 0.025A 24V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 6.14
		10	$ 5.60
		48	$ 5.10
		144	$ 4.40
		288	$ 4.00
		528	$ 3.71
		1008	$ 3.44
		2544	$ 3.30

Description

General part information

A6R Series

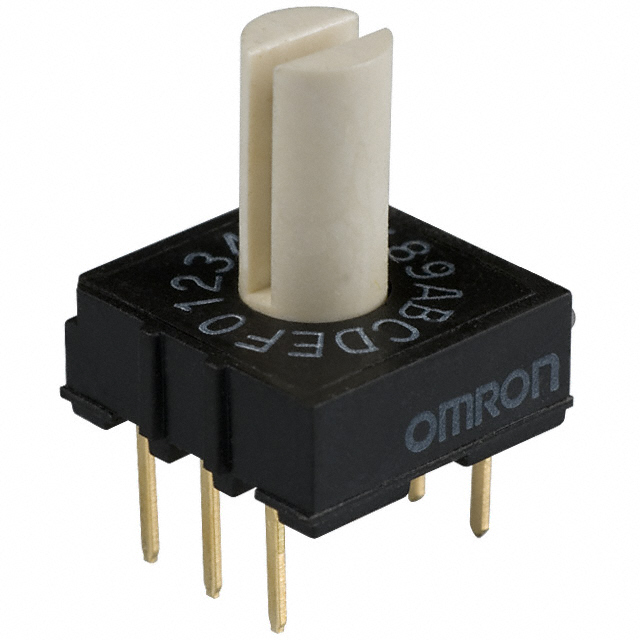

Dip Switch Hexadecimal 16 Position Through Hole Rotary with Shaft Actuator 25mA 24VDC

Documents

Technical documentation and resources

How to Read Date Codes

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	A6R-162RS	A6R Series

Actuator Level	Raised	Flush, Recessed, Raised
Actuator Type	Rotary with Shaft	Rotary for Tool, Rotary with Shaft
Circuit	Hexadecimal	BCD, Hexadecimal
Current Rating (Amps)	25 mA	25 mA
Electrical Life	5000 Steps	5000 Steps
Features	Sealed	Sealed
Height Above Board	-	0.177 - 0.472 in
Height Above Board	-	4.5 - 12 mm
Height Above Board [z]	0.465 "	0.465 "
Height Above Board [z]	11.8 mm	11.8 mm
Length [x]	0.386 "	0.386 "
Length [x]	9.8 mm	9.8 mm
Mounting Type	Through Hole	Through Hole, Surface Mount, Through Hole, Right Angle
Number of Positions	16	16
Number of Positions	-	10
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-25 °C	-25 °C
Pitch	Full	Full
Pitch [x]	0.1 in	0.1 in
Pitch [x]	2.54 mm	2.54 mm
Termination Style	PC Pin	PC Pin, Gull Wing
Voltage Rating	24 VDC	24 VDC
Washable	False	False

A6R Series

SWITCH ROTARY DIP BCD 0.025A 24V

Part	Voltage Rating	Termination Style	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Height Above Board	Height Above Board	Electrical Life	Actuator Level	Circuit	Pitch [x]	Pitch	Pitch [x]	Length [x]	Length [x]	Current Rating (Amps)	Actuator Type	Features	Mounting Type	Number of Positions	Height Above Board [z]	Height Above Board [z]
Omron Electronics Inc-EMC Div A6R-101RF	24 VDC	PC Pin	10	-25 °C	80 C	0.177 in	4.5 mm	5000 Steps	Flush, Recessed	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole
Omron Electronics Inc-EMC Div A6RS-161RF	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6R-101RS	24 VDC	PC Pin	10	-25 °C	80 C			5000 Steps	Raised	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary with Shaft	Sealed	Through Hole		0.465 "	11.8 mm
Omron Electronics Inc-EMC Div A6R-162RF	24 VDC	PC Pin		-25 °C	80 C	0.177 in	4.5 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole	16
Omron Electronics Inc-EMC Div A6RS-162RF-P	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6R-161RS	24 VDC	PC Pin		-25 °C	80 C			5000 Steps	Raised	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary with Shaft	Sealed	Through Hole	16	0.465 "	11.8 mm
Omron Electronics Inc-EMC Div A6RS-161RF-P	24 VDC	Gull Wing		-25 °C	80 C	0.185 in	4.7 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool		Surface Mount	16
Omron Electronics Inc-EMC Div A6RV-102RF	24 VDC	PC Pin	10	-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	BCD	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle
Omron Electronics Inc-EMC Div A6RV-162RF	24 VDC	PC Pin		-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle	16
Omron Electronics Inc-EMC Div A6RV-161RF	24 VDC	PC Pin		-25 °C	80 C	0.39 in	9.9 mm	5000 Steps	Flush, Recessed	Hexadecimal	0.1 in	Full	2.54 mm	0.386 "	9.8 mm	25 mA	Rotary for Tool	Sealed	Through Hole, Right Angle	16
