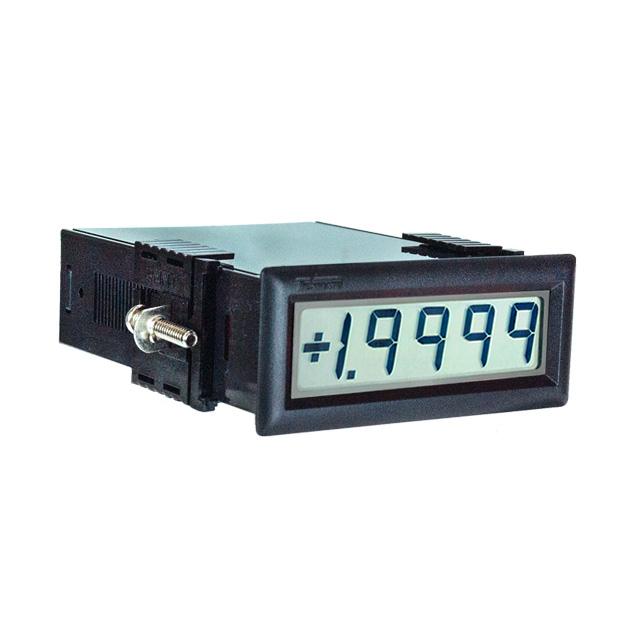

PM-45X-200MV
ActiveTexmate
200MV DIFFERENTIAL 0.01% DCV MTR
Deep-Dive with AI
Search across all available documentation for this part.
PM-45X-200MV
ActiveTexmate
200MV DIFFERENTIAL 0.01% DCV MTR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PM-45X-200MV |
|---|---|
| Display Characters - Height [z] | 12.2 mm |
| Display Characters - Height [z] | 0.48 in |
| Display Type | LED |
| Measuring Range [Max] | 0.2 VDC |
| Measuring Range [Min] | 0 V |
| Measuring Type | Voltage |
| Number of Characters Per Row | 4.5 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| Panel Cutout Dimensions [x] | 64.77 mm |
| Panel Cutout Dimensions [y] | 24.64 mm |
| Termination Style | Card Edge |
| Type | Voltmeter |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 299.00 | |
Description
General part information
PM-45X Series
Voltmeter LED Display Panel Mount
