1247002-2
ActiveTE Connectivity AMP Connectors

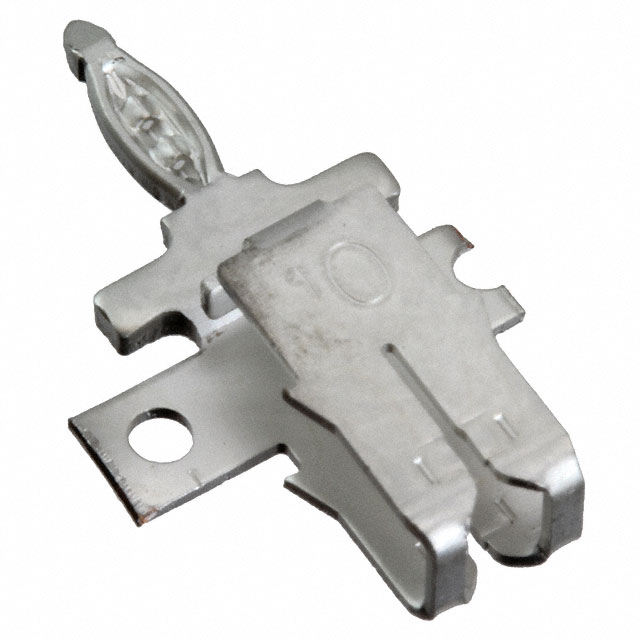

CONN MAG TERM 23-26AWG PRESS-FIT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1247002-2
ActiveTE Connectivity AMP Connectors
CONN MAG TERM 23-26AWG PRESS-FIT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 1247002-2 | 1247002 Series |
|---|---|---|
| Size | 2 Liter | 2 Liter |
| Style | 300 | 300 |
| Terminal Type | Box IDC | Box IDC |
| Termination | Press-Fit | Press-Fit |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.29 | |||
| 25 | $ 0.29 | |||
| 50 | $ 0.28 | |||
| 100 | $ 0.26 | |||
| 250 | $ 0.21 | |||
| 500 | $ 0.20 | |||
| 1000 | $ 0.19 | |||
| 2500 | $ 0.18 | |||
| Tape & Reel (TR) | 150000 | $ 0.15 | ||
1247002 Series
CONN MAG TERM 23-26AWG PRESS-FIT
Description
General part information
1247002 Series
Terminal Magnetic Connector 300 23-26 AWG Press-Fit
