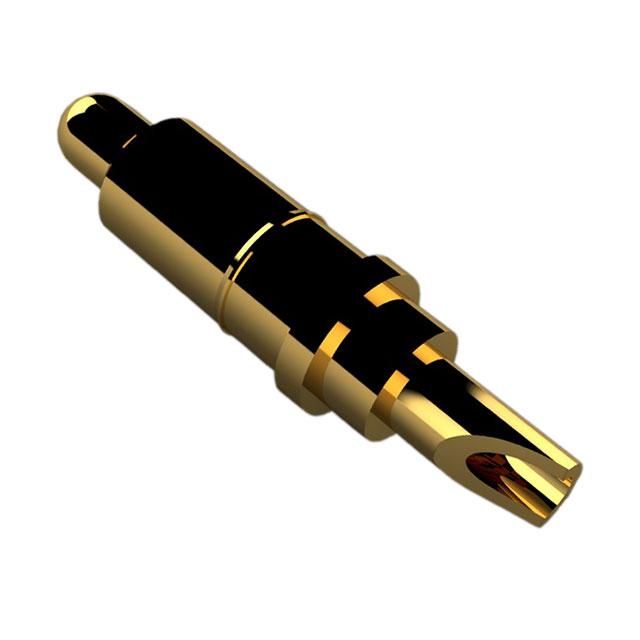

90204-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
90204-AS
ActivePRECI-DIP SA
CONTACT SPRING LOADED SLDR CUP
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 90204-AS |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Contact Material | Brass Alloy |
| Contact Type | Sleeve & Plunger (Pogo Pins) |
| Current Rating (Amps) | 3 A |
| Mating Cycles | 40000 |
| Maximum Working Height [Max] | 5 mm |
| Maximum Working Height [Max] | 0.197 in |
| Minimum Working Height [Min] | 3.6 mm |
| Minimum Working Height [Min] | 0.142 in |
| Mounting Type | Solder Cup, Through Hole |
| Operating Force - Initial | 25.49 gf |
| Operating Force - Mid Compression | 61.18 gf |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pad Layout Dimension [diameter] | 0.061 in |
| Pad Layout Dimension [diameter] | 1.55 mm |
| Plunger Size [diameter] | 0.042 in |
| Plunger Size [diameter] | 1.07 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.07 | |
| 10 | $ 0.90 | |||
| 25 | $ 0.87 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.81 | |||
| 250 | $ 0.74 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.59 | |||
| 2500 | $ 0.53 | |||
Description
General part information
90204-AS
Contact Spring Through Hole, Solder Cup
