OD9225-24MBIP5502A

Active

Orion Fans

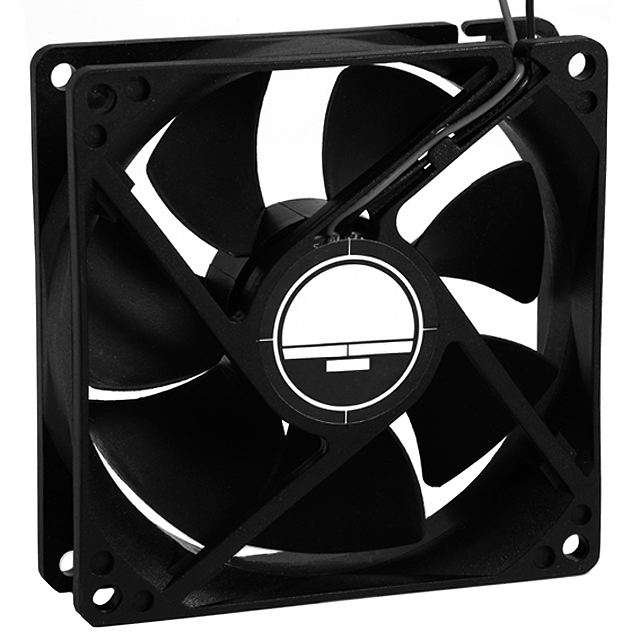

FAN AXIAL 92.5X25MM 24VDC WIRE

Deep-Dive with AI

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	520	$ 13.96

Description

General part information

OD9225 Series

Fan Tubeaxial 24VDC Square - 92.5mm L x 92.5mm H Ball 3 Wire Leads

Documents

Technical documentation and resources

No documents available

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	OD9225-24MBIP5502A	OD9225 Series

Air Flow	-	1.4 m³/min
Air Flow	-	0.7 - 50 CFM
Air Flow	-	25 - 69 CFM
Approval Agency	cURus, TUV	cURus, TUV, CE, UR
Bearing Type	Ball	Sealed Sleeve, Ball, Sleeve
Current Rating (Amps)	-	0.09 - 150 A
Fan Type	Tubeaxial	Tubeaxial
Features	Alarm Sensor	Speed Sensor (Tach), PWM Control, Auto Restart, Thermal Overload Protector (TOP), Locked Rotor Sensor, Alarm Sensor, Kit
Ingress Protection	IP55 - Dust Protected, Water Resistant	IP68 - Dust Tight, Waterproof, IP69K, IP55 - Dust Protected, Water Resistant
Lifetime @ Temp.	-	50000 - 70000 Hrs
Material - Blade	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Polybutylene Terephthalate (PBT), Fiberglass Reinforced, Polybutylene Terephthalate (PBT)
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	-	23 - 43 dB(A)
Noise	-	23 dB
Noise	-	35 dB
Operating Temperature	-	65 - 80 °C
Operating Temperature	-	65 - 80 °C
Operating Temperature	-	-20 - -10 °C
Operating Temperature	-	-20 - -10 °C
Power (Watts)	-	1.4 - 19 W
RPM	-	1500 - 3575 RPM
Size / Dimension [x]	92.5 mm	92.5 mm
Size / Dimension [z]	92.5 mm	92.5 mm
Static Pressure	-	6.2 - 67.3 Pa
Static Pressure	-	0.025 - 0.27 in H2O
Termination	3 Wire Leads	4 Wire Leads, 2 Wire Leads, Cord and Plug, 3 Wire Leads
Voltage - Rated	24 VDC	5 - 120 VDC
Voltage - Rated	-	48 VDC
Voltage Range	-	13.8 - 72 VDC
Voltage Range	-	7 - 36 VDC
Width [y]	25 mm	25 mm

OD9225 Series

FAN AXIAL 92.5X25MM 12VDC WIRE

...

Part	Material - Frame	Voltage - Rated	Bearing Type	Features	Material - Blade	Fan Type	Approval Agency	Termination	Size / Dimension [x]	Size / Dimension [z]	Width [y]	Static Pressure	Static Pressure	Power (Watts)	Ingress Protection	Air Flow	Air Flow	Lifetime @ Temp.	RPM	Noise	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Voltage Range [Max]	Voltage Range [Min]	Air Flow	Noise [Min]	Noise [Max]
Orion Fans OD9225-12HHSS10A	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	Sealed Sleeve	PWM Control, Speed Sensor (Tach)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	4 Wire Leads	92.5 mm	92.5 mm	25 mm
Orion Fans OD9225-24HBIP68		24 VDC	Ball	Auto Restart	Polybutylene Terephthalate (PBT)	Tubeaxial	cURus, TUV	2 Wire Leads			25 mm	59.8 Pa	0.24 in H2O	3.5 W	IP68 - Dust Tight, Waterproof	1.4 m³/min	50 CFM	70000 Hrs	2900 RPM	33 dB(A)	0.18 A	65 °C	65 °C	-15 °C	-15 °C
Orion Fans OD9225-12LS	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	Sleeve		Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	2 Wire Leads	92.5 mm	92.5 mm	25 mm
Orion Fans OD9225-60HB	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	60 V	Ball		Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	2 Wire Leads	92.5 mm	92.5 mm	25 mm	54.8 Pa	0.22 in H2O	12 W			1.93 m³/min	50000 Hrs	3200 RPM	39 dB(A)	0.2 A	70 °C	70 °C	-10 °C	-10 °C	72 VDC	36 VDC	69 CFM
Orion Fans OD9225-SPOT/DIN		120 VAC	Ball	Auto Restart, Thermal Overload Protector (TOP)	Polybutylene Terephthalate (PBT)	Tubeaxial		Cord and Plug	92.5 mm	92.5 mm	25 mm	44.8 Pa	0.18 in H2O	19 W			1.82 mł/min		1500 RPM		0.29 A	70 °C	70 °C	-10 °C	-10 °C			65 CFM	23 dB	35 dB
Orion Fans OD9225-12LB02A	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	Ball	Locked Rotor Sensor	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	3 Wire Leads	92.5 mm	92.5 mm	25 mm
Orion Fans OD9225-12HHB02A	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	Ball	Locked Rotor Sensor	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	3 Wire Leads	92.5 mm	92.5 mm	25 mm
Orion Fans OD9225-12HBIP68		12 VDC	Ball	Auto Restart	Polybutylene Terephthalate (PBT)	Tubeaxial	cURus, TUV	2 Wire Leads			25 mm	59.8 Pa	0.24 in H2O	3 W	IP68 - Dust Tight, Waterproof	1.4 m³/min	50 CFM	70000 Hrs	2900 RPM	35 dB	0.29 A	65 °C	65 °C	-15 °C	-15 °C
Orion Fans OD9225-24HHBIP68		24 VDC	Ball	Auto Restart	Polybutylene Terephthalate (PBT)	Tubeaxial	cURus, TUV	2 Wire Leads			25 mm	62.3 Pa	0.25 in H2O	3.5 W	IP68 - Dust Tight, Waterproof		1.68 mł/min	70000 Hrs	3300 RPM	38 dB(A)	0.18 A	65 °C	65 °C	-15 °C	-15 °C			60 CFM
Orion Fans OD9225-12HSS10A	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	12 VDC	Sealed Sleeve	PWM Control, Speed Sensor (Tach)	Polybutylene Terephthalate (PBT), Fiberglass Reinforced	Tubeaxial	cURus, TUV	4 Wire Leads	92.5 mm	92.5 mm	25 mm
