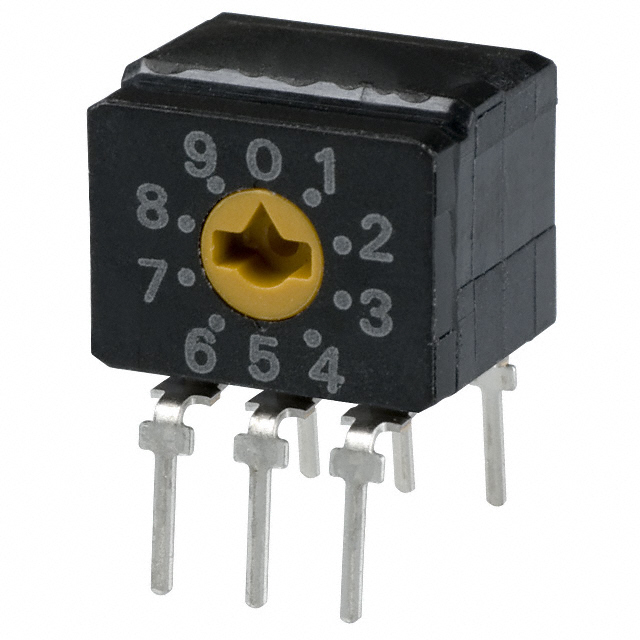

A6CV-16R
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.1A 30V
Deep-Dive with AI
Search across all available documentation for this part.
A6CV-16R
ActiveOmron Electronics Inc-EMC Div
SWITCH ROTARY DIP HEX 0.1A 30V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | A6CV-16R | A6C Series |
|---|---|---|
| Actuator Level | Flush, Recessed | Flush, Recessed |
| Actuator Type | Rotary for Tool | Rotary for Tool |
| Circuit | Hexadecimal | Hexadecimal |
| Current Rating (Amps) | 100 mA | 100 mA |
| Electrical Life | 2000 Steps | 2000 Steps |
| Features | IP64 - Dust Tight, Water Resistant | IP64 - Dust Tight, Water Resistant |
| Height Above Board | 0.358 " | 0.177 - 0.358 in |
| Height Above Board | 9.1 mm | 4.5 - 9.1 mm |
| Length | 0.354 in | 0.354 in |
| Length | 9 mm | 9 mm |
| Mechanical Life | 10000 Steps | 10000 Steps |
| Mounting Type | Through Hole, Right Angle | Through Hole, Through Hole, Right Angle |
| Number of Positions | 16 | 16 |
| Operating Temperature [Max] | 70 °C | 70 °C |
| Operating Temperature [Min] | -20 C | -20 C |
| Pitch | Full | Full |
| Pitch [x] | 0.1 in | 0.1 in |
| Pitch [x] | 2.54 mm | 2.54 mm |
| Termination Style | PC Pin | PC Pin |
| Voltage Rating | 30 VDC | 30 VDC |
| Washable | False | False |
A6C Series
SWITCH ROTARY DIP HEX 0.1A 30V
| Part | Voltage Rating | Length | Length | Electrical Life | Circuit | Number of Positions | Termination Style | Actuator Type | Features | Current Rating (Amps) | Operating Temperature [Min] | Operating Temperature [Max] | Washable | Actuator Level | Mechanical Life | Pitch [x] | Pitch | Pitch [x] | Height Above Board | Height Above Board | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Omron Electronics Inc-EMC Div A6C-16R(N) | 30 VDC | 0.354 in | 9 mm | 2000 Steps | Hexadecimal | 16 | PC Pin | Rotary for Tool | IP64 - Dust Tight, Water Resistant | 100 mA | -20 C | 70 °C | Flush, Recessed | 10000 Steps | 0.1 in | Full | 2.54 mm | 0.177 in | 4.5 mm | Through Hole | |
Omron Electronics Inc-EMC Div A6CV-16R | 30 VDC | 0.354 in | 9 mm | 2000 Steps | Hexadecimal | 16 | PC Pin | Rotary for Tool | IP64 - Dust Tight, Water Resistant | 100 mA | -20 C | 70 °C | Flush, Recessed | 10000 Steps | 0.1 in | Full | 2.54 mm | 0.358 " | 9.1 mm | Through Hole, Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 8.13 | |
| 10 | $ 7.76 | |||
| 25 | $ 7.06 | |||
| 100 | $ 6.10 | |||
| 250 | $ 5.54 | |||
| 500 | $ 5.14 | |||
| 1000 | $ 4.77 | |||
Description
General part information
A6C Series
Dip Switch Hexadecimal 16 Position Through Hole, Right Angle Rotary for Tool Actuator 100mA 30VDC
