9620 0605000

Active

Belden Inc.

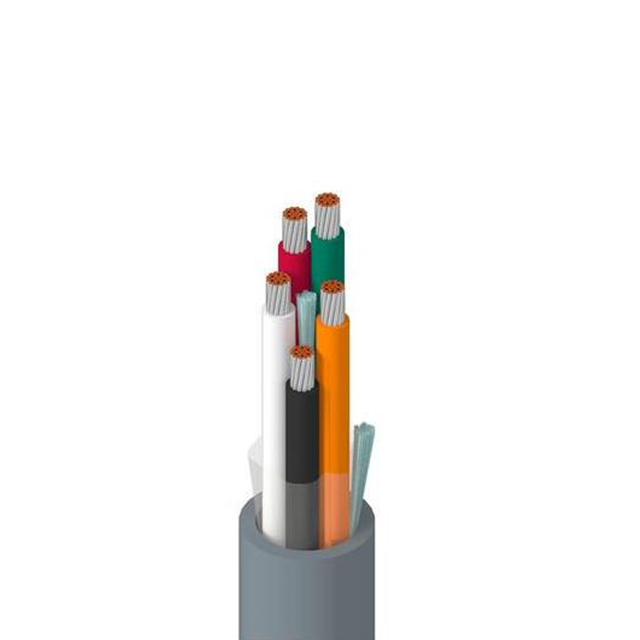

CABLE 5COND 16AWG CHROME

Search across all available documentation for this part.

Active

Belden Inc.

CABLE 5COND 16AWG CHROME

Technical Specifications

Parameters and characteristics for this part

Specification	9620 0605000

Cable Type	Multi-Conductor
Conductor Insulation	Poly-Vinyl Chloride (PVC)
Conductor Material	Copper, Tinned
Conductor Strand [custom]	19 Strands
Conductor Strand [custom]	29 AWG
Jacket (Insulation) Diameter [diameter]	10.44 mm
Jacket (Insulation) Diameter [diameter]	0.411 in
Jacket (Insulation) Material	Poly-Vinyl Chloride (PVC)
Jacket (Insulation) Thickness	1.067 mm
Jacket (Insulation) Thickness	0.042 in
Jacket Color	Chrome
Number of Conductors	5
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-20 C
Usage	Audio, Instrumentation, Control
Wire Gauge	16 AWG

Part	Jacket (Insulation) Material	Number of Conductors	Jacket Color	Conductor Material	Usage	Wire Gauge	Length [x]	Length [x]	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Conductor Insulation	Cable Type	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length
Belden Inc. 9620 060100	Poly-Vinyl Chloride (PVC)	5	Chrome	Copper Tinned	Audio Control Instrumentation	16 AWG	30.5 m	100 ft	10.44 mm	0.411 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1.067 mm	0.042 in	19 Strands	29 AWG
Belden Inc. 9620 0601000	Poly-Vinyl Chloride (PVC)	5	Chrome	Copper Tinned	Audio Control Instrumentation	16 AWG			10.44 mm	0.411 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1.067 mm	0.042 in	19 Strands	29 AWG	1000 ft	304.8 m
Belden Inc. 9620 0605000	Poly-Vinyl Chloride (PVC)	5	Chrome	Copper Tinned	Audio Control Instrumentation	16 AWG			10.44 mm	0.411 in	-20 C	80 C	Poly-Vinyl Chloride (PVC)	Multi-Conductor	1.067 mm	0.042 in	19 Strands	29 AWG

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	5000	$ 5.71

General part information

5 Conductor Multi-Conductor Cable Chrome 16 AWG 5000' (1524.0m)
