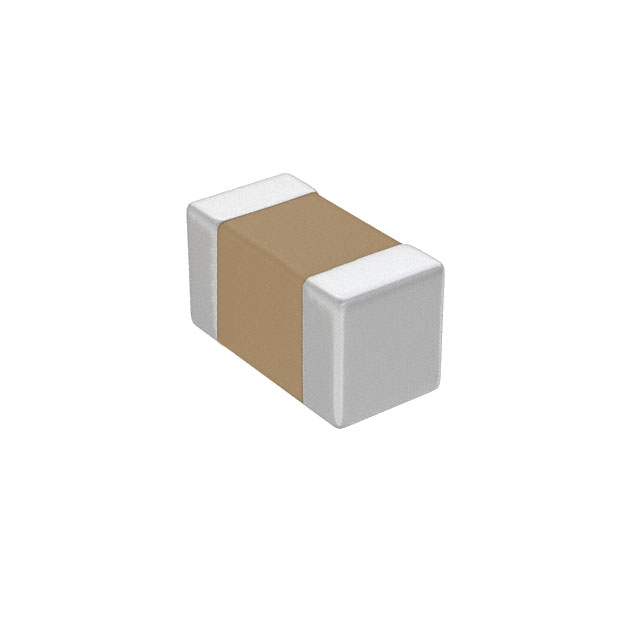

Z0402C220CSMST
ObsoleteKEMET
FERRITE BEAD 22 OHM 0402 1LN
Deep-Dive with AI
Search across all available documentation for this part.
Z0402C220CSMST
ObsoleteKEMET
FERRITE BEAD 22 OHM 0402 1LN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | Z0402C220CSMST | Z0402C Series |
|---|---|---|
| Current Rating (Max) [Max] | 400 mA | 1 - 700 mA |
| DC Resistance (DCR) (Max) [Max] | 200 mOhm | 30 - 800 mOhm |
| Filter Type | - | Power Line |
| Height (Max) | 0.55 mm | 0.55 mm |
| Height (Max) [Max] | 0.022 in | 0.022 in |
| Impedance @ Frequency | 22 Ohms | 1 - 600 kOhms |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Lines | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 85 - 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Package / Case | 0402 (1005 Metric) | 0402 (1005 Metric) |
| Size / Dimension [x] | 1 mm | 1 mm |
| Size / Dimension [x] | 0.039 in | 0.039 in |
| Size / Dimension [y] | 0.02 in | 0.02 in |
| Size / Dimension [y] | 0.5 mm | 0.5 mm |
Z0402C Series
FERRITE BEAD 1 KOHM 0402 1LN
| Part | Current Rating (Max) [Max] | Number of Lines | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Mounting Type | DC Resistance (DCR) (Max) [Max] | Impedance @ Frequency | Height (Max) [Max] | Height (Max) | Operating Temperature [Min] | Operating Temperature [Max] | Package / Case | Filter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
KEMET Z0402C102BSMST | 150 mA | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 800 mOhm | 1 kOhms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |
KEMET Z0402C330ASMST | 700 mA | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 100 mOhm | 33 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |
KEMET Z0402C601ESMST | 300 mA | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 600 mOhm | 600 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |
KEMET Z0402C182GSMST | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 1.8 kOhms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |||
KEMET Z0402C241ESMST | 400 mA | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 310 mOhm | 240 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |
KEMET Z0402C100APMST | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 30 mOhm | 10 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | Power Line | |
KEMET Z0402C220CSMST | 400 mA | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 200 mOhm | 22 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |
KEMET Z0402C121FPMST | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 120 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | Power Line | ||
KEMET Z0402C152GSMST | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 1.5 kOhms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | |||
KEMET Z0402C330FPMST | 1 | 1 mm | 0.02 in | 0.5 mm | 0.039 in | Surface Mount | 33 Ohms | 0.022 in | 0.55 mm | -55 °C | 125 °C | 0402 (1005 Metric) | Power Line |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.03 | |||
| 25 | $ 0.03 | |||
| 50 | $ 0.03 | |||
| 100 | $ 0.03 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.03 | |||
| 5000 | $ 0.03 | |||
Description
General part information
Z0402C Series
22 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0402 (1005 Metric) 400mA 200mOhm
